AXIS P1254 Network Camera offers a cost-effective mini bullet-style camera for discreet surveillance in stores, kiosks, hotels and offices. The sensor unit of this indoor HDTV 720p camera allows for easy installation on walls or ceilings, and can rotate and tilt to the desired viewing direction.
Modular concept

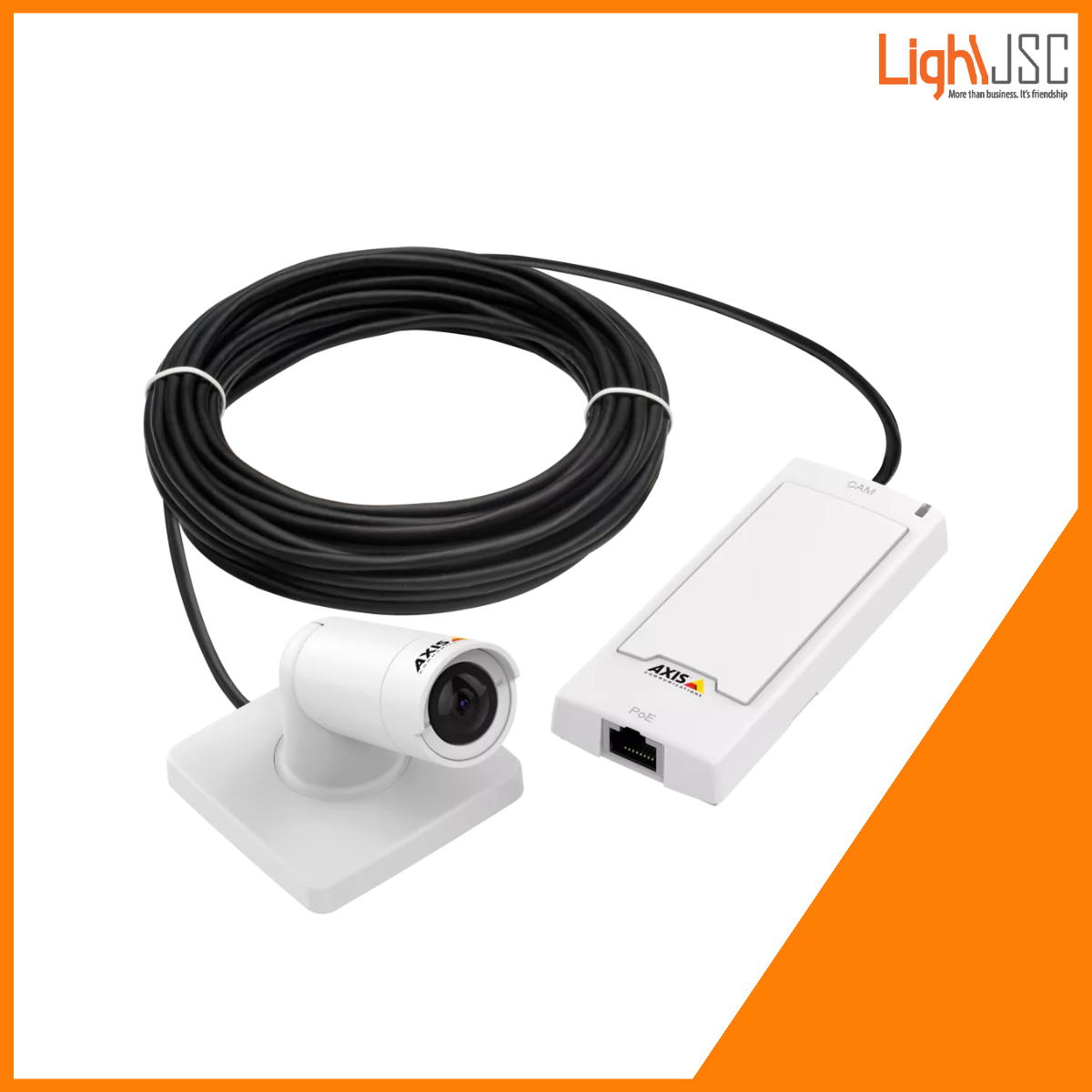

AXIS P1254 is composed of the following: an AXIS F1004 Bullet Sensor Unit, comprising a lens and image sensor, and AXIS P12 Mk II Main Unit, which is the body of the camera. The sensor unit comes with a detachable 8-m (26 ft) cable for connection to the main unit. The cable enables the main unit to be placed away from the viewing point where there is space.
Bullet sensor unit
With a base plate smaller than the palm of a hand, the bullet-style sensor unit is both small and sleek. It provides a 102° horizontal field of view and color video in light as low as 0.4 lux.
Compact main unit
The main unit, with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 720p videos and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage of recordings.
Technical specifications
Model: Camera Axis P1254
General
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -20 to 50 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating – – | – |
Camera
| Image sensor | CMOS |
| Wide dynamic rangeForensic Capture | Dynamic Contrast |
| 0.22 lux | 0.40 lux |
| Min illumination/ light sensitivity (B/W) | – |
| Thermal sensitivity (NETD) | – |
| Thermal sensor resolution | – |
System integration
| Audio detection | – |
| Active tampering | Yes |
| Alarm inputs/outputs | – |
| Serial connectors | – |
| AXIS Camera Application Platform | Yes |
| Digital I/O | – |
Video
| Max video resolution | 1280×720 |
| Max frames per second | 25/30 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Multiple color palettes | – |
Lens
| Focal length | 2.1 mm |
| Varifocal lens | No |
| Aperture | 2.2 |
| Horizontal field of view | 102 ° |
| Vertical field of view | 56 ° |
| Lens mount | M12 |
| Replaceable lens | – |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
| Two-way audio | – |
Network
| Power over Ethernet | Yes |
| PoE Class | 2 |
Security
| HTTPS encryption | Yes |
| IEEE 802.1X | Yes |
Power
| Power (max) | – |
| Power (average) | – |
| DC input voltage | – |
