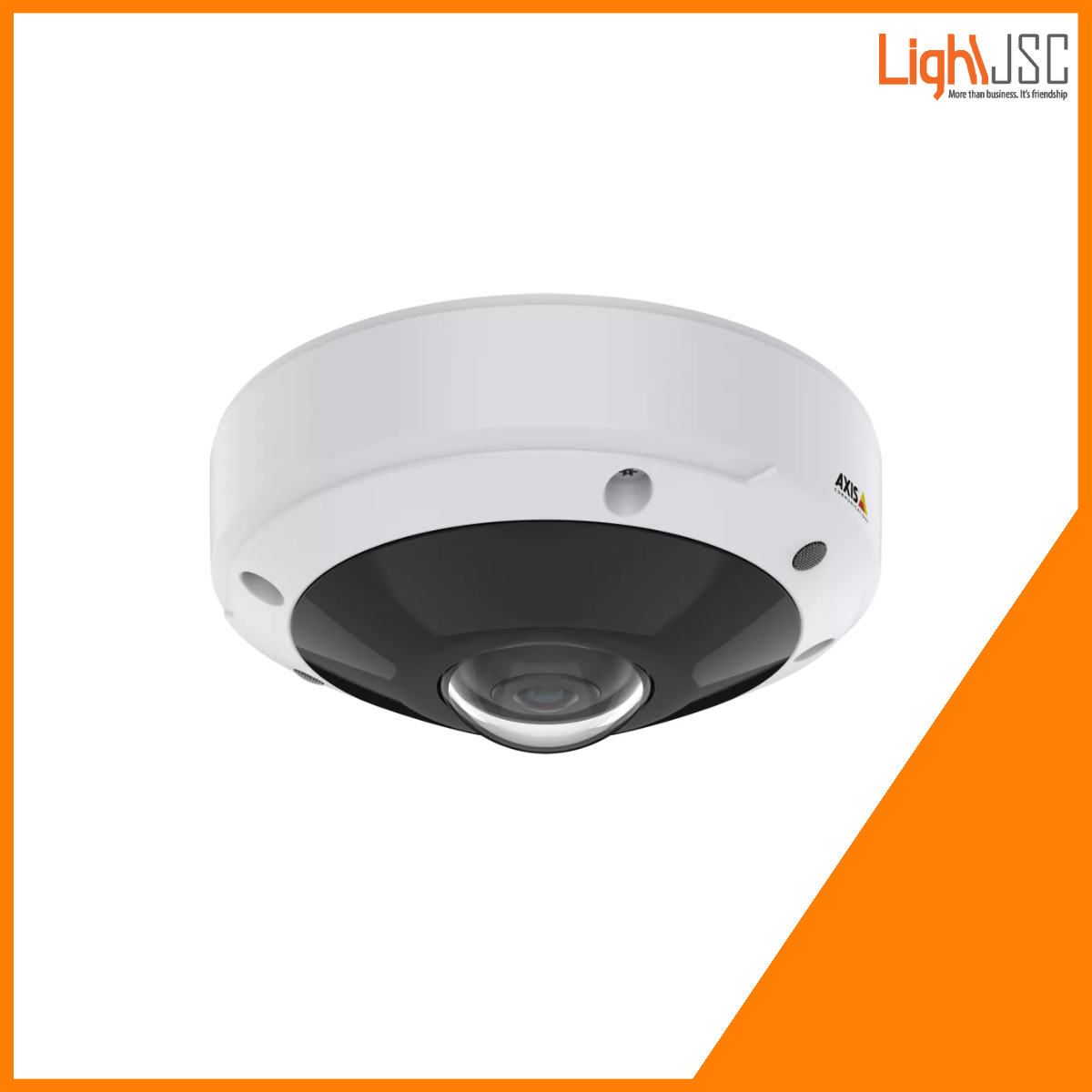

AXIS M3077-PLVE Network Camera
6 MP outdoor-ready dome with 360° panoramic view and audio capture
- Complete 180° and 360° overview
- Lightfinder, Forensic WDR, and OptimizedIR
- Digital PTZ and dewarped views
- Built-in microphones
- Enhanced security features
See and hear- 24/7
AXIS M3077-PLVE delivers a complete 180° or 360° overview, indoors or out, around the clock. This compact, IK10-rated vandal-resistant mini dome can be repainted to blend in seamlessly with any surroundings. And, the IP66 rating keeps the camera safe from dust and powerful blasts of water. It features two built-in microphones allowing for audio surveillance and detection. Furthermore, you can use one video stream to produce any dewarped views you’d like. And, it’s possible to stream panorama, quad, corner, and corridor views directly from the camera. Plus, you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously.
Sharp images in any light
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality regardless of the light conditions. It includes Axis Lightfinder for sharp, color images in poor lighting conditions and Axis Forensic WDR for high-quality images even when there’s both dark and light areas in the scene. Plus, there’s no need for extra lighting, thanks to Axis OptimizedIR you get 24/7 coverage for surveillance in pitch darkness up to 20 m (65 ft) or more. Furthermore, it’s possible to stream the complete 360° overview so you can be sure you record everything with no blind spots.
New generation camera
AXIS M3077-PLVE is packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And, secure boot guarantees the camera is completely free of malware even after a factory default. It’s delivered factory-focused and features digital roll functionality allowing you to remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
Technical specifications
Model: Camera Axis M3077-PLVE Network Camera
Camera
| Image sensor | CMOS |
| Image sensor size | 1/1.8 |
| Sensor size in megapixel | 6.0 |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR |
| Min illumination/ light sensitivity (Color) | 0.16 lux |
| Min illumination/ light sensitivity (B/W) | – |
Video
| Max video resolution | 2016×2016 |
| Max frames per second | 50/60 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Focal length | 1.56 mm |
| Horizontal field of view | 183 ° |
| Vertical field of view | 183 ° |
Pan, Tilt, Zoom
| Remote PTRZ | – |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
Audio
| Audio Support | Yes |
| Built-in microphone | Yes |
Network
| PoE Class | 3 |
| Wireless | – |
Security
| Signed firmware | Yes |
| Secure boot | Yes |
General
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -40 to 50 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66 |
| Designed for repaint | – |
| Sustainability | PVC free |
