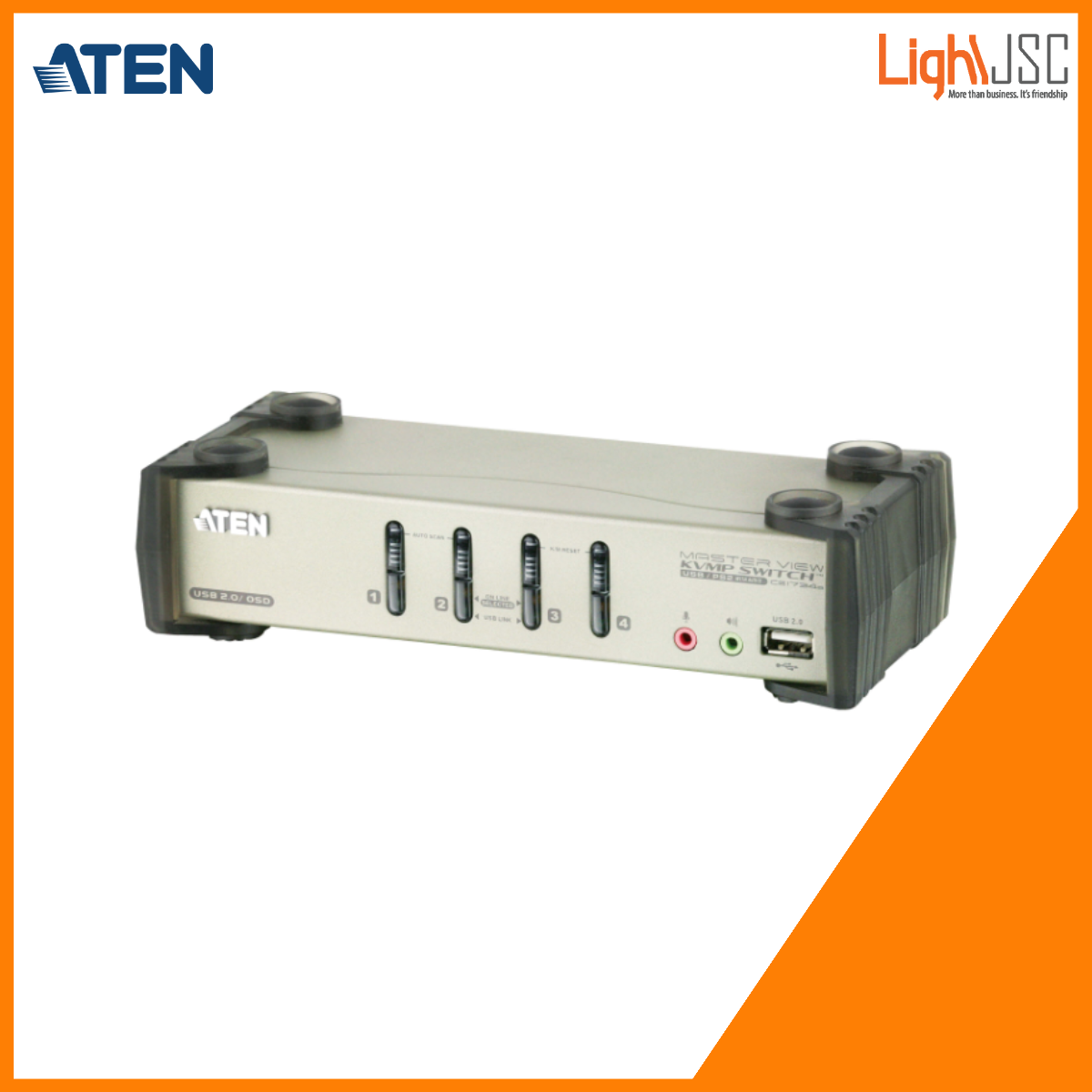

Aten CS1734B 4-Port PS/2-USB VGA/Audio KVMP™ Switch with OSD

Superior video quality; 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
Supports computers with PS/2 or USB keyboard and mouse configurations
Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution

Categories: Aten KVM Switch, KVM SWITCH, Uncategorized

The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.

Package Contents

1x 4-Port USB 2.0 KVMP™ Switch
2 x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2 x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
2x OSD/Hotkey Stickers
1x Firmware Upgrade Cable
1x Power Adapter
1x User Instructions

Features

4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
One console controls four computers and two additional USB devices
2-port USB 2.0 hub built in
USB 2.0 compliant
Dual interface – supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled – full bass response provides a rich experience for 2.1 surround sound systems
Console audio ports on front panel for easy access – ideal for IP phone users
Independent switching of KVM, USB, and Audio focus
Superior video quality; 2048 x 1536; DDC2B
Supports widescreen resolutions
Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse
Multiplatform support – Windows , Mac, and Sun
Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Sun/Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
LED Display for easy status monitoring
Easy installation no software required
Firmware upgradeable*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers

Diagram

Specifications

Computer Connections	4
Port Selection	Hotkey, Pushbutton, OSD, Mouse
Connectors
Console Ports	2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
KVM Ports	4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade	1 x 4-conductor 3.5mm Jack (Black)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (White)
Switches
Selected	4 x Pushbutton
LEDs
Online / Selected	4 (Orange)
USB Link	4 (Green)
Emulation
Keyboard / Mouse	PS/2; USB
Video	2048 x 1536 @ 60Hz; DDC2B
Scan Interval	1-255 Seconds (Default: 5 sec.)
Power Consumption	DC5.3V:2.8W:39BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.78 kg ( 1.72 lb )
Dimensions (L x W x H)	21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
