Seada Technology’s SW8000 range are the latest 4K video wall controllers, offering up to 4K resolution on both input and output channels, along with support for 8 video overlay windows on each display screen.
The SW8000 controllers support up to 36 displays and 36 video capture channels at 4K resolution, using a single chassis. The number of video capture channels increases to 128 at HD resolution.
The SW8000 controllers are pure hardware based systems, offering extremely fast start up times. In addition, the systems benefit from a working environment free of viruses and software conflicts, ensuring 24/7 hassle free operational ability.
The SW 8000s support IP camera and other RTSP H.264 streams, making them the finest solution for security video wall application. Their HDCP capability allows them to display of protected content.
The SW 8000 controllers are pure hardware based controller. It enables the controller to offer extremely fast start up speed and a virus and software conflict free working environment which ensures its 24/7 hassle free operation ability.

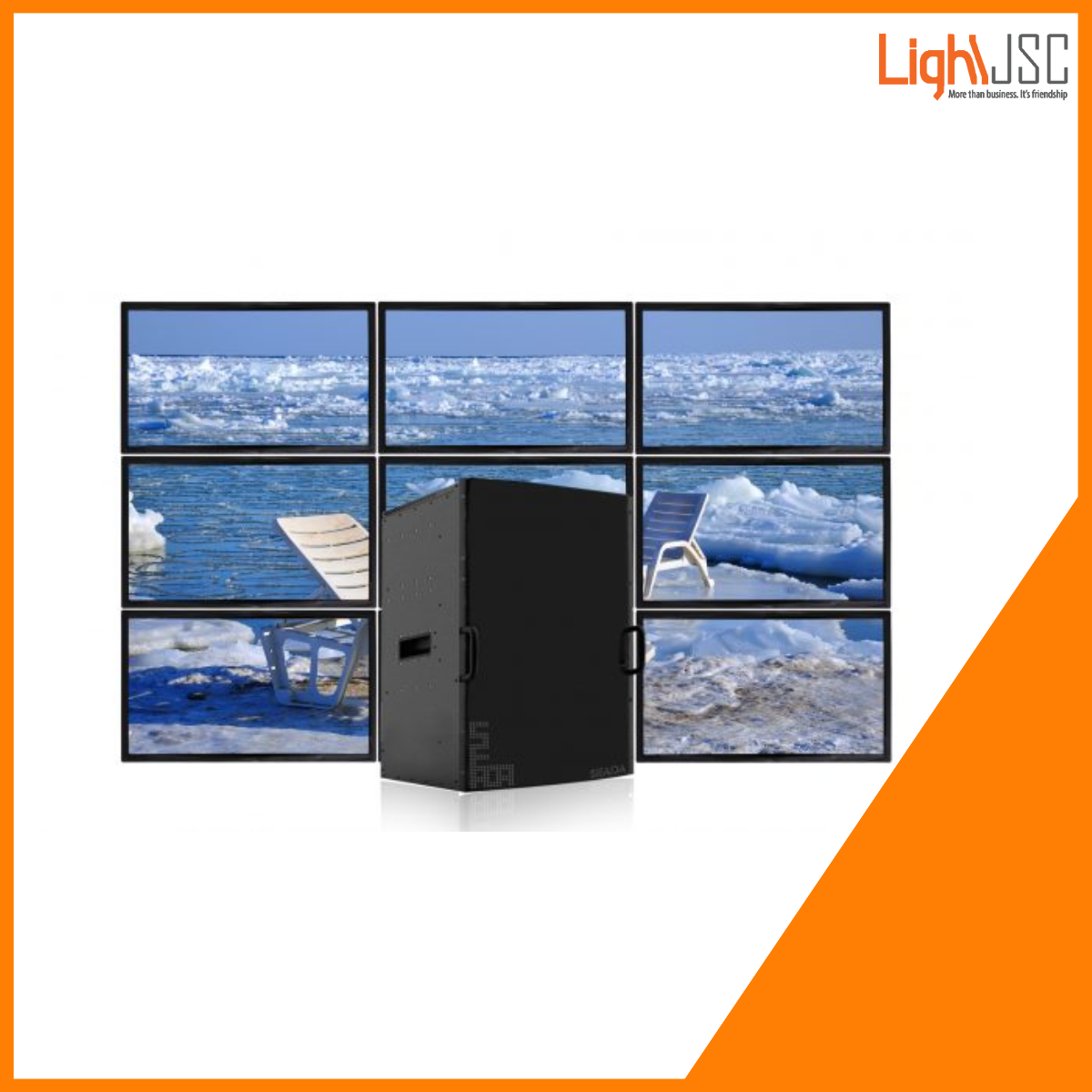

Features of Solarwall SW8018 Video Wall Controller
SW8018 is video wall controller designed for medium to large size video wall projects. With its ability to support maximum 18 4K displays, it is an ideal video wall system for large digital signage, surveillance, command & control rooms and other video wall applications.
With its 14U chassis, SW8018 is able to capture 96 HD or 384 SD video inputs and output them onto a video wall with up to 18 UHD displays simultaneously. It is able to capture all sorts of digital and analog signals: DVI, HDMI, 3G/HD-SDI, Component and CVBS signals. Besides its ability of capturing 4K content, it also supports to decode and capture IP streaming signals in the very same controller. HDCP compliance allows SW8018 to capture and display content-protected HD signals.
SW8018 is flexible in output and input configuration. It can be customised for the customers and also easy to be upgraded simply by changing the input/output cards in the chassis.
Key Features of Solarwall SW8018 Video Wall Controller
|
|
Technical Specification
| CONTROLLER CHASSIS | 8U 19” ANST/EIA RS-310C STANDARD INDUSTRIAL CHASSIS |
|---|---|
| DIMENSIONS | 482*380*353 |
| MAX INPUT CHANNEL | 52 HD OR 8 CHANNELS OF 4K CAPUTURE OR 104 1080P IPS |
| INPUT FORMAT | DVI/HDMI/VGA, SDI, DP, SD, DL_DVI, HDBASET, FIBER OPTICAL, IP STREAMING |
| MAX OUTPUT CHANNEL | 8 4K OUTPUTS |
| OUTPUT FORMAT | HDMI1.4 OR DL-DVI |
| HDCP SUPPORT | YES |
| POWER SUPPLY | SINGLE OR RPSU |
| INPUT VOLTAGE | AC 110V TO 240V, 50/60HZ |
| OPERATION SYSTEM | WINDOWS2000/XP/VISTA/7/8 |
| WARRANTY | 2 YEARS |
| OPERATING TEMPERATURE RANGE | 0/40 DEGREES CENTIGRADE |
| OPERATING HUMIDITY RANGE | 10%~90% NON-CONDENSING |
| STORAGE TEMPERATURE RANGE | 10~60 DEGREES CENTIGRADE |
| STORAGE HUMIDITY RANGE | 10%~90% |
| CONTROL INTERFACE | RS232 OR ETHERNET PORT |
Overview of Seada Video Controller
SEADA Technology manufactures a range of video wall controllers for many different applications. The Solar Wall family of controllers are suitable for the most complex Command & Control applications, including security, military, transport and process control.
The Solar Wall 2000 is our entry-level controller, offering systems with up to 144 graphics outputs and up to 128 HD or 512 SD inputs. This range supports two video overlay windows per display.
The Solar Wall 4000 family of wall controllers benefit from much higher bandwidth. The 4000 supports four overlay windows per display, simultaneously. This range is the perfect solution for applications where video inputs are more than two times the number of display outputs and all inputs need to be displayed simultaneously on the video wall.
One of Seada Technology’s highest-end controllers is the Solar Wall 8000. This range supports up to a 4K resolution on both input and output channels.
