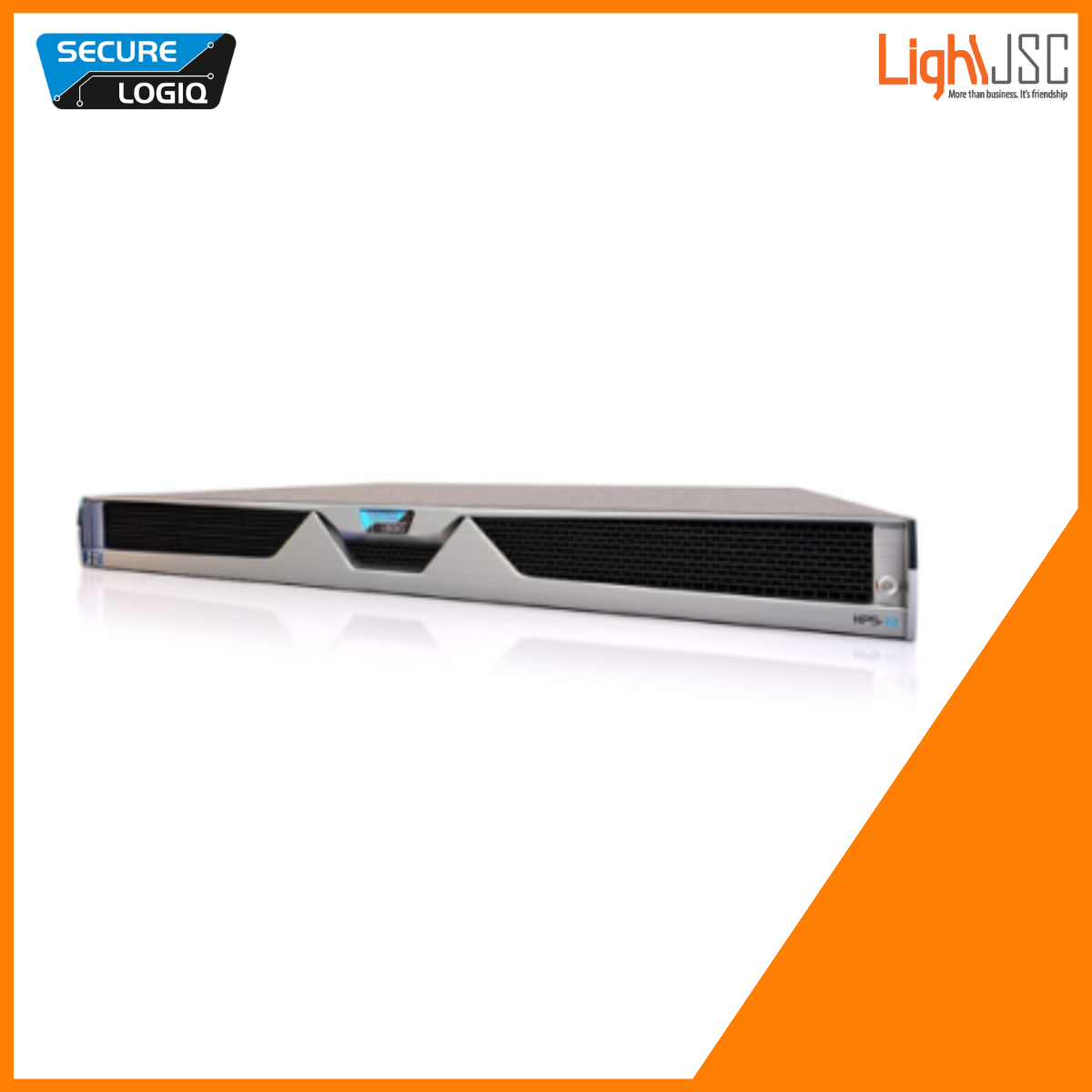

HPS-1U-M8 Recording Server Secure Logiq
- Original: United Kingdom
- Operating System: Windows Server 2019 64bit
- CPU: Intel Xeon Quad-Core V6
- Memory storage: 8GB DDR4 ECC Server
- Operating system hard drive: SSD 250GB x 1
- Card raid: hardware RAID with battery backup
- RAID configuration: RAID 5
- Available storage capacity: 8TB (3 x 4TB Enterprise HDD)
- Communication port: 2 x Gigabit LAN
HPS-1U-M8 Recording Server – Được thiết kế dành riêng cho các ứng dụng giám sát HD doanh nghiệp, dòng máy chủ HPS-1U-M cung cấp bộ nhớ trên bo mạch có thể Bus lên đến 30T và một loạt các tính năng phục hồi quan trọng theo tiêu chuẩn bao gồm PSU dự phòng kép, dự phòng RAID dự phòng bằng pin tiên tiến, Hệ điều hành trên SSD ( s) và tiện ích cảnh báo và giám sát trong nhà của Secure Logiq, Logiqal Healthcheck PRO. Dòng sản phẩm này phù hợp với hầu hết các ứng dụng giám sát video HD có số lượng camera vừa và nhỏ.
General informations about HPS-1U-M8
- Original: United Kingdom
- Operating System: Windows Server 2019 64bit
- CPU: Intel Xeon Quad-Core V6
- Memory storage: 8GB DDR4 ECC Server
- Operating system hard drive: SSD 250GB x 1
- Card raid: hardware RAID with battery backup
- RAID configuration: RAID 5
- Available storage capacity: 8TB (3 x 4TB Enterprise HDD)
- Bandwidth: 700Mbps
- Communication port: 2 x Gigabit LAN
- Graphics: 1 x VGA Power supply unit: Redundant 1 + 1 300W, 80 Plus Certified Gold
- Size: 1U
- Accessories: Keyboard, mouse, Rackmount kit
Technical Specifications of HPS-1U-M8
| Operating system | Windows Server 2019 64bit |
| Hard drive configuration | SSD 250GB x 1 |
| Storage (Raw usable after RAID applied) | HPS-1U-M8=8TB |
| Processor | Intel V6 Xeon Quad-Core |
| Memory | 8GB DDR4 ECC Server Memory |
| Network | Dual Gigabit LAN interface |
| Graphics | 1 x VGA |
| Electrical
PSU Type AC Voltage Certification |
Redundant 1+1 300W 100 – 240V, 50 – 60Hz 80 Plus Certified Gold |
| Mechanical
Form Factor Dimensions/ HxWxD Weight |
1U Rackmount 43mmx437mmx550mm( 1.7’’x17.2’’x21.7’’) 17kg (without hard drivers) |
| Environmental
Operating temperature Storage temperature Humidity range Storage humidity range |
5-35 độ C (50-95 độ F) -40 đến 60 °C (-40 đến 158°F) 8 – 90% non-condensing 5 – 95% non-condensing |
| Regulatory (power supply)
Power Supply Safety/ EMC |
USA – UL listed, FCC Canada – CUL listed Europe/CE Mark EN 60950/IEC 60950-Compliant |
| Other
Included accessories
|
Power cables Rack mount kit Keyboard and mouse |
Why choose Secure Logiq?
Secure Logiq are the only manufacturer who provide an end to end service.
Since 2011 we have been developing the missing piece of the HD surveillance jigsaw:
- Servers specifically designed for HD surveillance
- An innovative concept in this industry sector
Our executive team has over 100 years of IP CCTV and server experience and boasts respected thought leaders from both the HD surveillance and computer hardware industries.
Currently, Secure Logiq’s solutions are applied by many world-famous partners such as Axis, Lenovo, Bosch … Contact 0986.760.010 to receive the most suitable solution consultation and quotation.
