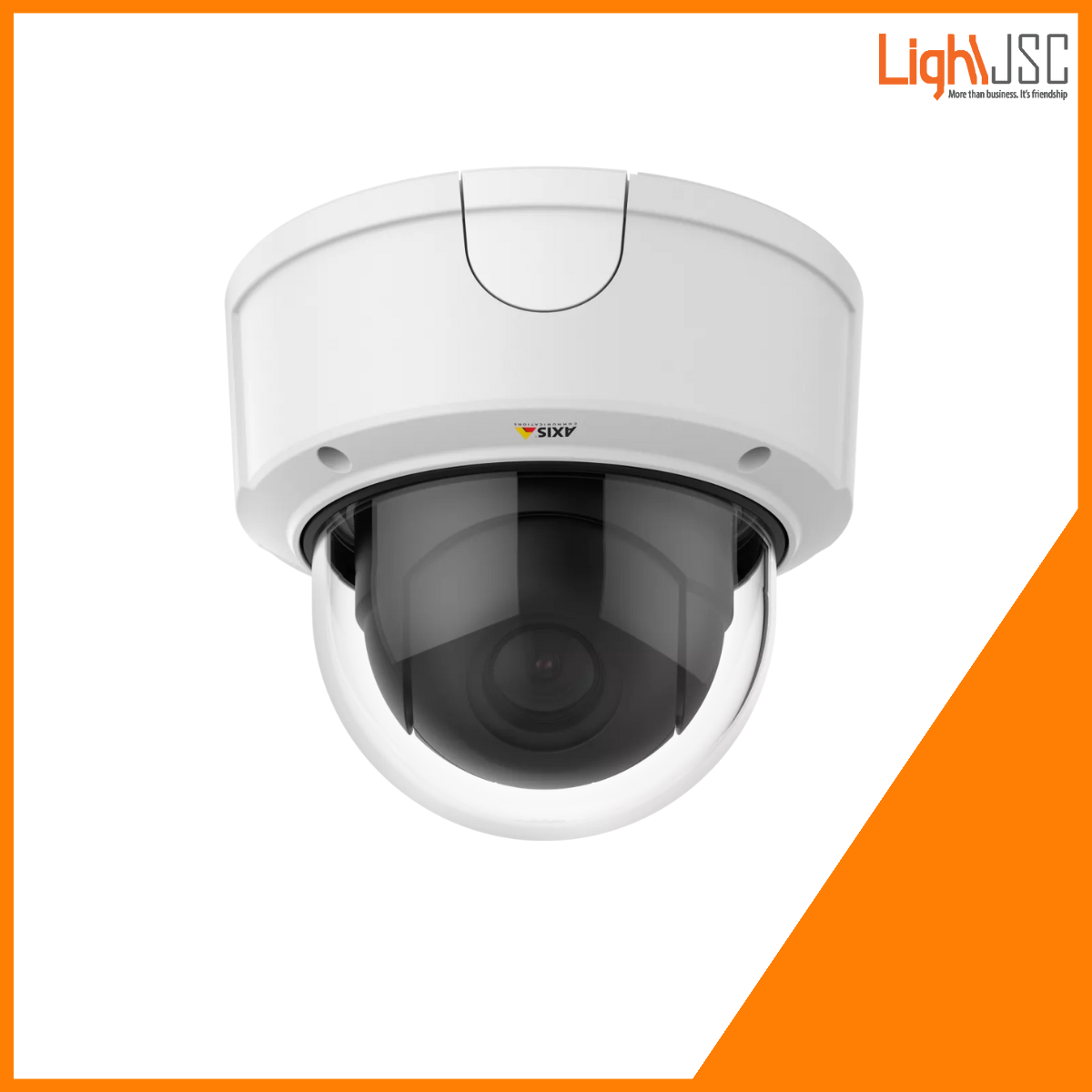

AXIS Q3617-VE Network Camera is designed for mission-critical surveillance scenarios. Delivering superior image quality, uptime and protection, it’s perfect for critical infrastructure, transportation, and city surveillance, for example.
Informations about AXIS Q3617-VE Network Camera
With our biggest sensors ever in a fixed dome camera, AXIS Q3617-VE provides the best possible image quality no matter what. WDR – Forensic Capture lowers noise and increases the image signal when there are both light and dark areas in a scene for forensic optimization. Axis Lightfinder technology delivers sharp color images in poor light conditions. And electronic image stabilization keeps the picture steady. AXIS Q3617-VE also gives you up to 6 MP at 20 fps without WDR or up to 4 MP at 30fps with WDR. And Axis Zipstream technology – saves bandwidth and storage by up to 50% without sacrificing quality.
AXIS Q3617-VE offers a unique solution: our remote PTRZ pan/tilt/roll/zoom feature. It allows for exceptionally speedy and efficient installation to keep costs and time low. And, if circumstances sometimes require you to readjust the view of the camera, remote PTRZ makes it possible to make changes from afar, without ever pausing the recording.
With its robust mechanical design, AXIS Q3617-VE is ready for outdoor installation in tough environments. It features IK10 vandal resistance, vibration resistance and shock detection. So you can count on your critical surveillance system staying up and running no matter what.
Technical specifications
Camera
| Image sensor |
CMOS |
| Image sensor size |
1/1.8 |
| Sensor size in megapixel |
6.0 |
| Lightfinder |
Lightfinder |
| Wide dynamic range |
Forensic Capture |
| Min illumination/ light sensitivity (Color) |
0.15 lux |
| Min illumination/ light sensitivity (B/W) |
0.03 lux |
Video
| Max video resolution |
3072×2048 |
| Max frames per second |
50/60 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
Yes |
Lens
| Focal length |
4.1 – 9 mm |
| Horizontal field of view |
101 – 46 ° |
| Vertical field of view |
66-30 ° |
Compression
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
– |
| Motion JPEG |
Yes |
Audio
| Audio Support |
– |
| Built-in microphone |
– |
Security
| Signed firmware |
Yes |
| Secure boot |
– |
General
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
– |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-40 to 60 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
IK10 |
| IP rating |
IP66, IP67, IP6K9K |
| Designed for repaint |
Yes |
| Sustainability |
PVC free |
