AXIS P1275 Network Camera is a palm-sized dome that’s designed for surface mounting. It’s excellent for overview or close-up applications. For example, it’s suitable for passport control or security control areas and in banks. It’s also particularly suitable when you want an unobtrusive camera that’s nevertheless visible enough to act as a deterrent.
Don’t miss a thing
AXIS P1275 offers an adjustable horizontal field of view of between 53° and 99° in HDTV 1080p for excellent video quality. It is equipped with Wide Dynamic Range – Forensic Capture, which enables the camera to handle scenes with strong variations in light. AXIS P1275 also offers good color video in low light.
Compact main unit
The main unit, with dimensions of 1.7 x 4.6 x 11 cm (5/8 x 1 13/16 x 4 5/16 in.) makes it easy to install in tight places. It provides HDTV 1080p video and is powered through Power over Ethernet (PoE). It has a built-in microSD card slot for local storage f recordings.
Plug-and-play modular design

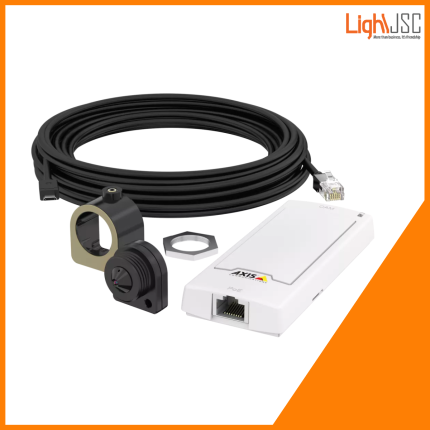

AXIS P1275 comes complete with a domed sensor unit, an 8-m/26-ft cable (a separately sold 15-meter cable is also available) and a main unit with network and power connection as well as a memory card slot. It’s easy to buy – because we put everything you need right in the box.
Keep it discreet, flexible and easy
The sensor unit can be tilted to optimize the installation, and the 2.8-6 mmvarifocal lens can be redirected, re-zoomed and focused after mounting, which makes it an excellent choice when you need flexibility. The camera comes with a detachable cable that connects the dome sensor unit to the main unit for flexible installation. This also simplifies maintenance and enables the use of accessory cables.
Technical specifications
Model: Camera Axis P1275
General
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -20 to 50 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating – – | – |
Camera
| Image sensor | CMOS |
| Wide dynamic rangeForensic Capture | Forensic Capturec |
| 0.22 lux | 0.22 lux |
| Min illumination/ light sensitivity (B/W) | – |
| Thermal sensitivity (NETD) | – |
| Thermal sensor resolution | – |
System integration
| Audio detection | – |
| Active tampering | Yes |
| Alarm inputs/outputs | – |
| Serial connectors | – |
| AXIS Camera Application Platform | Yes |
| Digital I/O | – |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 25/30 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Multiple color palettes | – |
Lens
| Focal length | 2.8 – 6.0 mm |
| Varifocal lens | Yes |
| Aperture | 2.0 |
| Horizontal field of view | 99 – 53 ° |
| Vertical field of view | 53-30 ° |
| Lens mount | M12 |
| Replaceable lens | – |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
| Two-way audio | – |
Network
| Power over Ethernet | Yes |
| PoE Class | 2 |
Security
| HTTPS encryption | Yes |
| IEEE 802.1X | Yes |
Power
| Power (max) | – |
| Power (average) | – |
| DC input voltage | – |
