Aten VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate

  • Uses two Cat 5e/6 cables to connect the local and remote units – one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
  • Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
  • Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
  • Supports 8 segment equalization adjustment via switch
Categories: ,

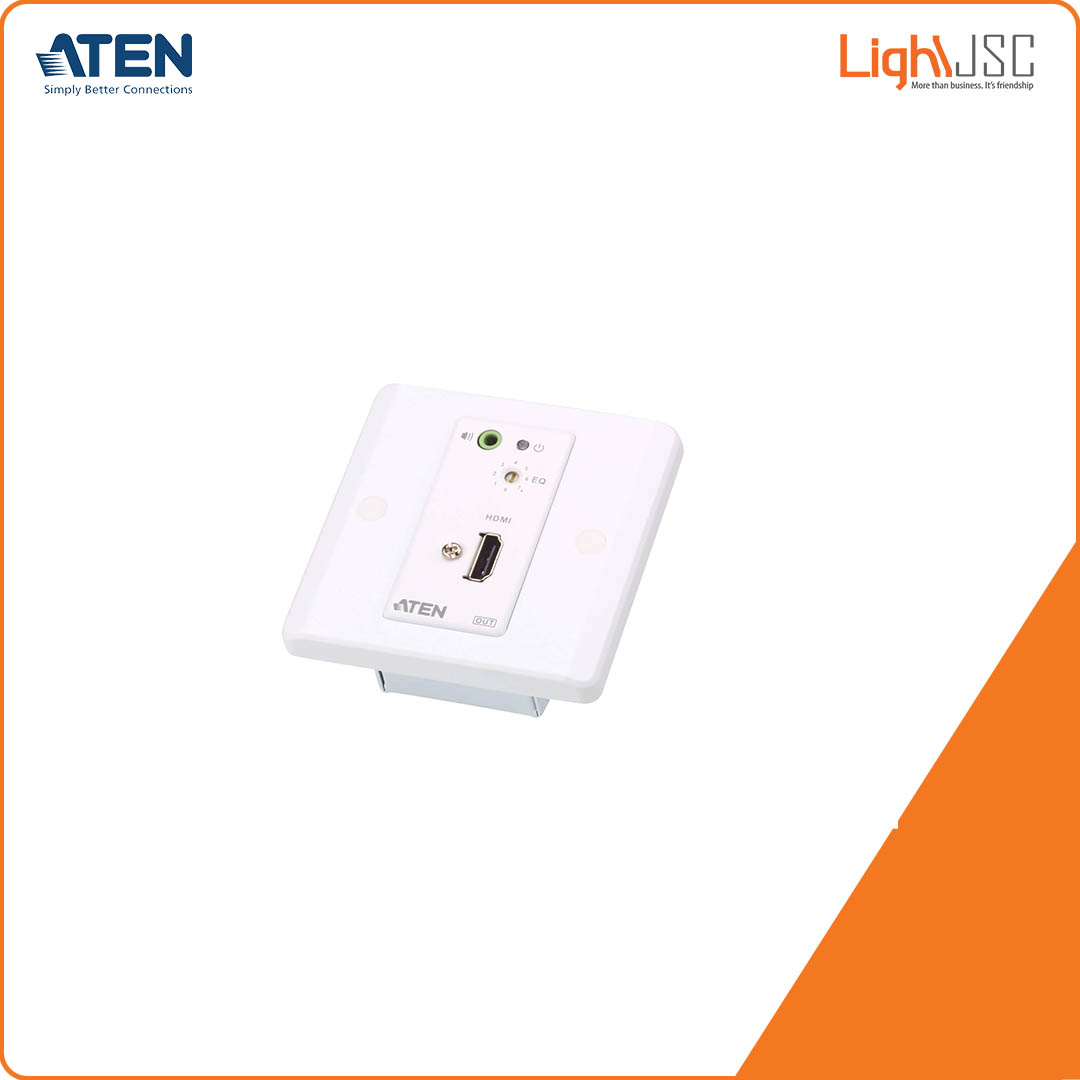

Aten VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.

The VE807 can be either powered at Transmitter or Receiver side, and a second Cat 5e/6 cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE807’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.

Package Contents

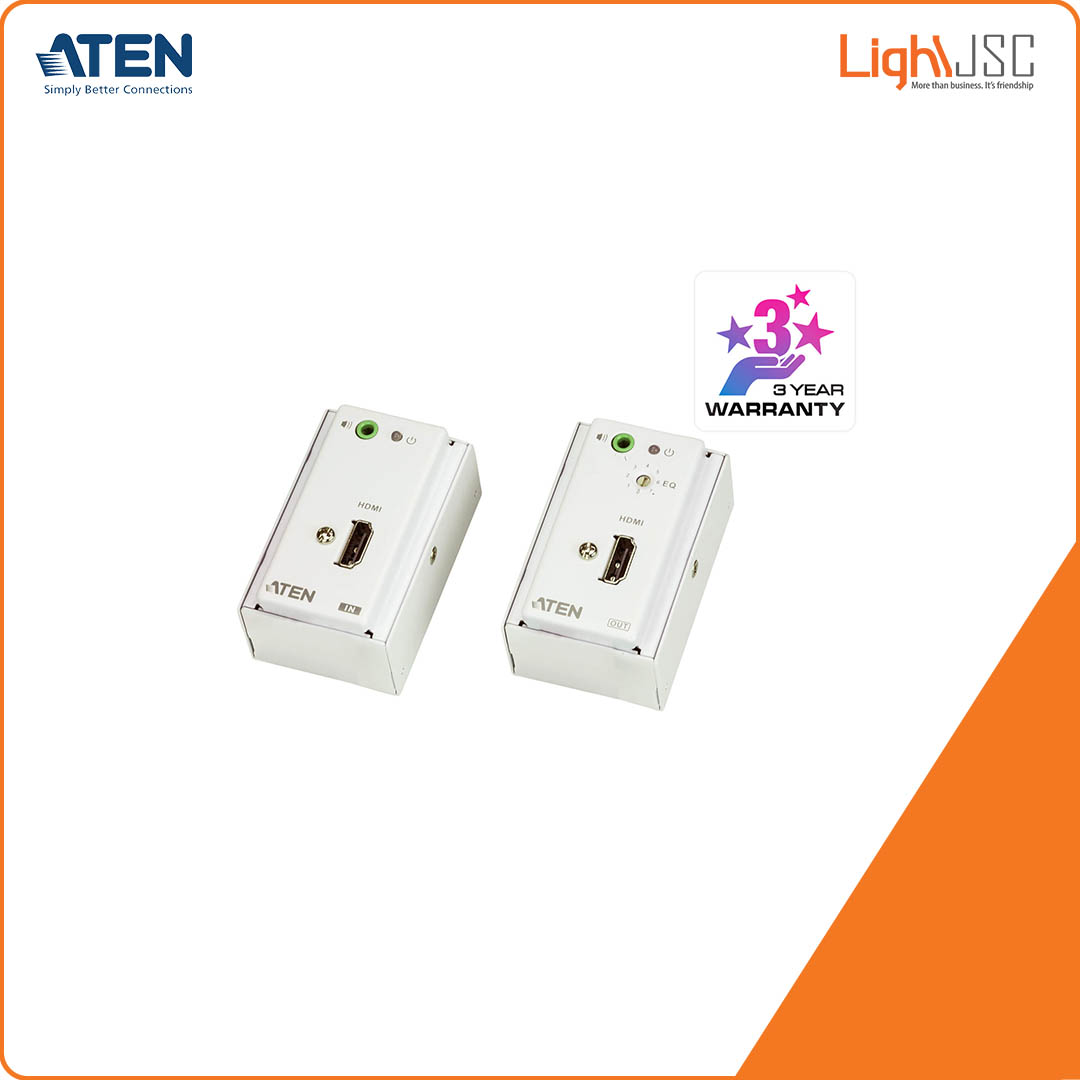

  • 1x VE807 HDMI/Audio Cat 5 Transmitter with MK Wall Plate
  • 1x VE807 HDMI/Audio Cat 5 Receiver with MK Wall Plate
  • 1x Terminal Block Connector
  • 1x Power Adapter
  • 2x MK type Wall Plate Covers
  • 8x Screw Covers
  • 1x Screw kit
  • 1x User Instructions

Features

  • Uses two Cat 5e/6 cables to connect the local and remote units – one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
  • Remotely powered from either the transmitter or receiver side**
  • Extends the distance between HDMI source and display
  • Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
  • Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
  • HDMI (3D, Deep Color); HDCP compatible
  • Supports 8 segment equalization adjustment via switch
  • Supports widescreen formats
  • Supports hot- plugging
  • Supports stereo audio
  • Built- in 8KV/ 15 KV ESD protection
  • Plug- and- play with no software installation required
  • LED indication of power sources / connection status
    * A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
    **A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit

Diagram

VE807_R_D

Specifications

Function VE807R VE807T
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ω
Max. Distance N/A 3 m (2L-7D03H)
Video Output
Interfaces 1 x HDMI Type A Female (Black) N/A
Impedance 100 Ω N/A
Max. Distance 3 m (2L-7D03H) N/A
Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible		 HDMI (3D, Deep Color)
HDCP Compatible
Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m Up to 1080p@40m; 1080i@60m
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 1 x HDMI Type A Female (Black) N/A
Connectors
Power 1 x Terminal Block (Green) 1 x Terminal Block (Green)
Power Consumption DC9V:0.81W:4BTU DC9V:1.35W:6BTU
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0-80% RH, Non-Condensing 0-80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.18 kg ( 0.4 lb ) 0.18 kg ( 0.4 lb )
Dimensions (L x W x H) 6.86 x 4.44 x 4.00 cm
(2.7 x 1.75 x 1.57 in.)		 6.86 x 4.44 x 4.00 cm
(2.7 x 1.75 x 1.57 in.)
Faceplate Dimensions (L x W x H) 8.60 x 8.60 x 1.60 cm
(3.39 x 3.39 x 0.63 in.)		 8.60 x 8.60 x 1.60 cm
(3.39 x 3.39 x 0.63 in.)
Carton Lot 5 pcs 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
