Aten-VE805R-HDMI-HDBaseT-Lite-Receiver-with-Scaler-sau

Aten VE805R HDMI HDBaseT-Lite Receiver with Scaler

  • HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
  • Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
  • Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
  • Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
Categories: ,

Aten VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.

With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Package Contents

  • 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
  • 1x Power Adapter
  • 1x IR Transmitter
  • 1x IR Receiver
  • 1x Terminal Block
  • 1x User Instructions

Features

  • Extends HDMI, RS-232, and IR signals up to 70 m over a single Cat 5e/6/6a cable
  • HDMI (3D, Deep Color) ; HDCP 1.4 compliant
  • Superior video quality – 1080p@60m (Cat 5e/6); 70m (Cat 6a)
  • Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
  • Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
  • Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
  • Bi-directional RS-232 channel – allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time***
  • Firmware upgradeable
  • Built- in 8KV / 15 KV ESD protection
  • Plug-and-play
  • Rack-mountable
    Note:
    1. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
    2. The Seamless Switch™ and video wall functionalities are available when the VE805R is used with ATEN HDBaseT Matrix. For further information, please see the compatible list below
    3. Supports full-frequency IR signals from 30 KHz to 56 KHz.

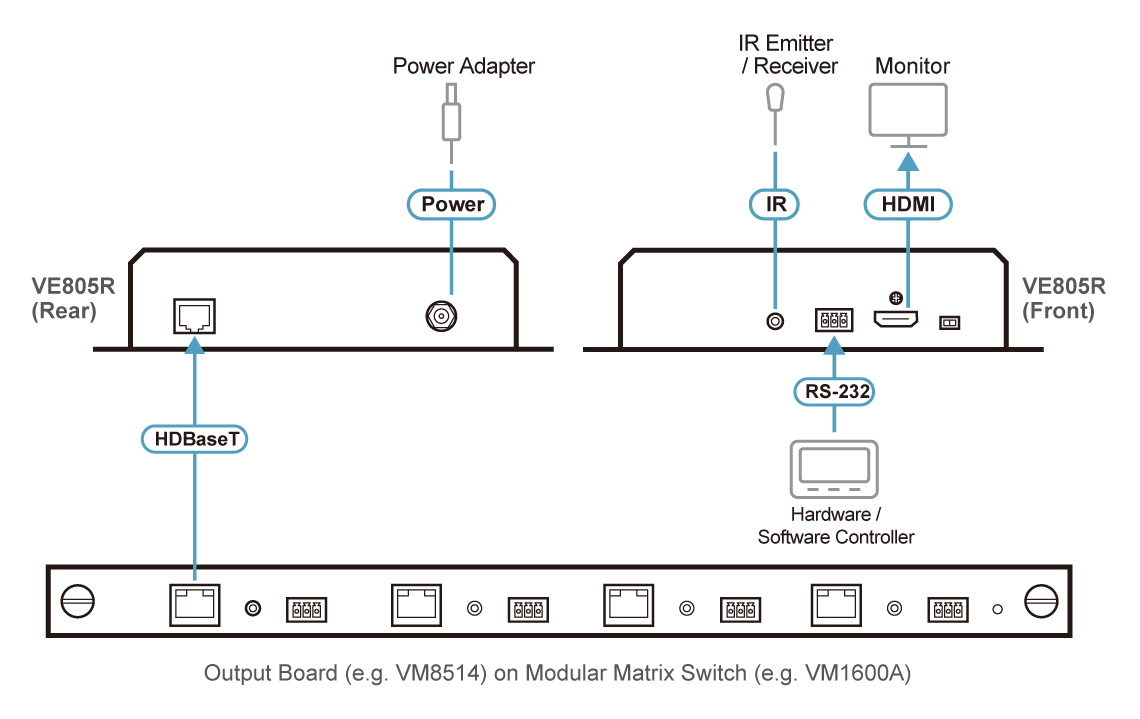

Diagram

VE805R-Video-Extenders-dg-org

Specifications

Video Input
Interfaces 1 x RJ-45 Female (Silver)
Impedance 100 Ω
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3 m (2L-7D03H)
Video
Max. Data Rate 6.75 Gpbs (2.25 Gbps per lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
HDBaseT Compatible
Max. Resolutions / Distance Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a)
Control
RS-232 1 x Captive Screw Connector, 3 Pole
IR 1 x Mini Stereo Jack Female (Black)
Connectors
Power 1 x DC Jack (Sliver)
Switches
Firmware Upgrade 1 x Slide Switch
Power Consumption DC5V:8.36W:39BTU
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.81 kg ( 1.78 lb )
Dimensions (L x W x H) 17.74 x 16.92 x 4.20 cm
(6.98 x 6.66 x 1.65 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
