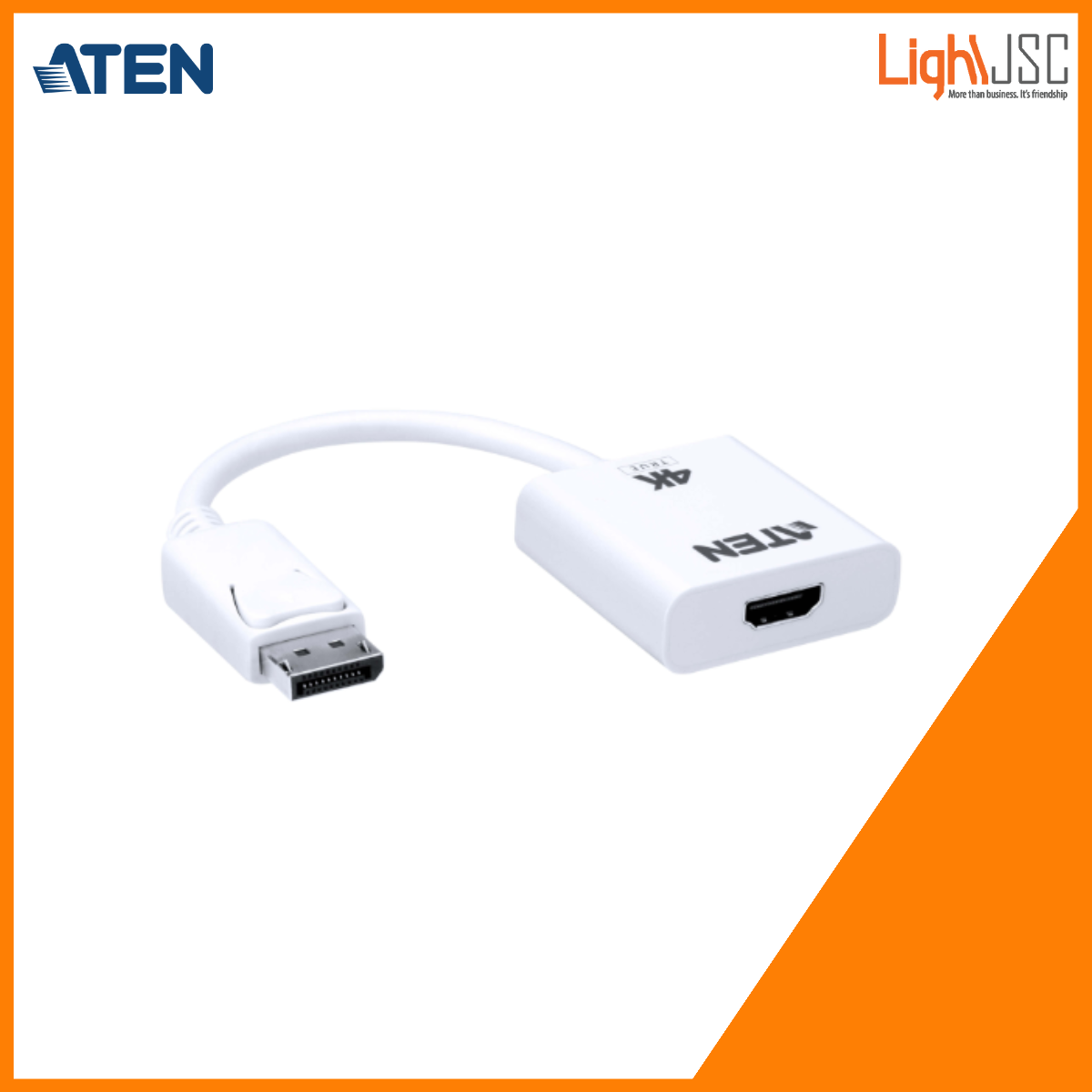

Aten VC985 DisplayPort to HDMI Adapter
The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.
Compatible with AMD Eyefinity graphics cards for multiple display applications.
The VC986B is an active DisplayPort to HDMI adapter that allows you to connect your DisplayPort output device to the HDMI input of a True 4K TV or any other display.
The ATEN VC986B is an active adapter, featuring an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++).* Moreover, support for resolutions up to True 4K makes this adapter ideal for users who require a high performance signal conversion solution.
*Dual-Mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Video | |
| Max. Pixel Clock | 600 MHz |
| Max. Resolution | 4096×2160@60Hz / 3840×2160@60Hz |
| Compliance | DP1.2a / HDMI 2.0 / HDCP 2.2 |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Audio | |
| Output | 1 x HDMI Type A Female (Black) |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20–60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.09 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
