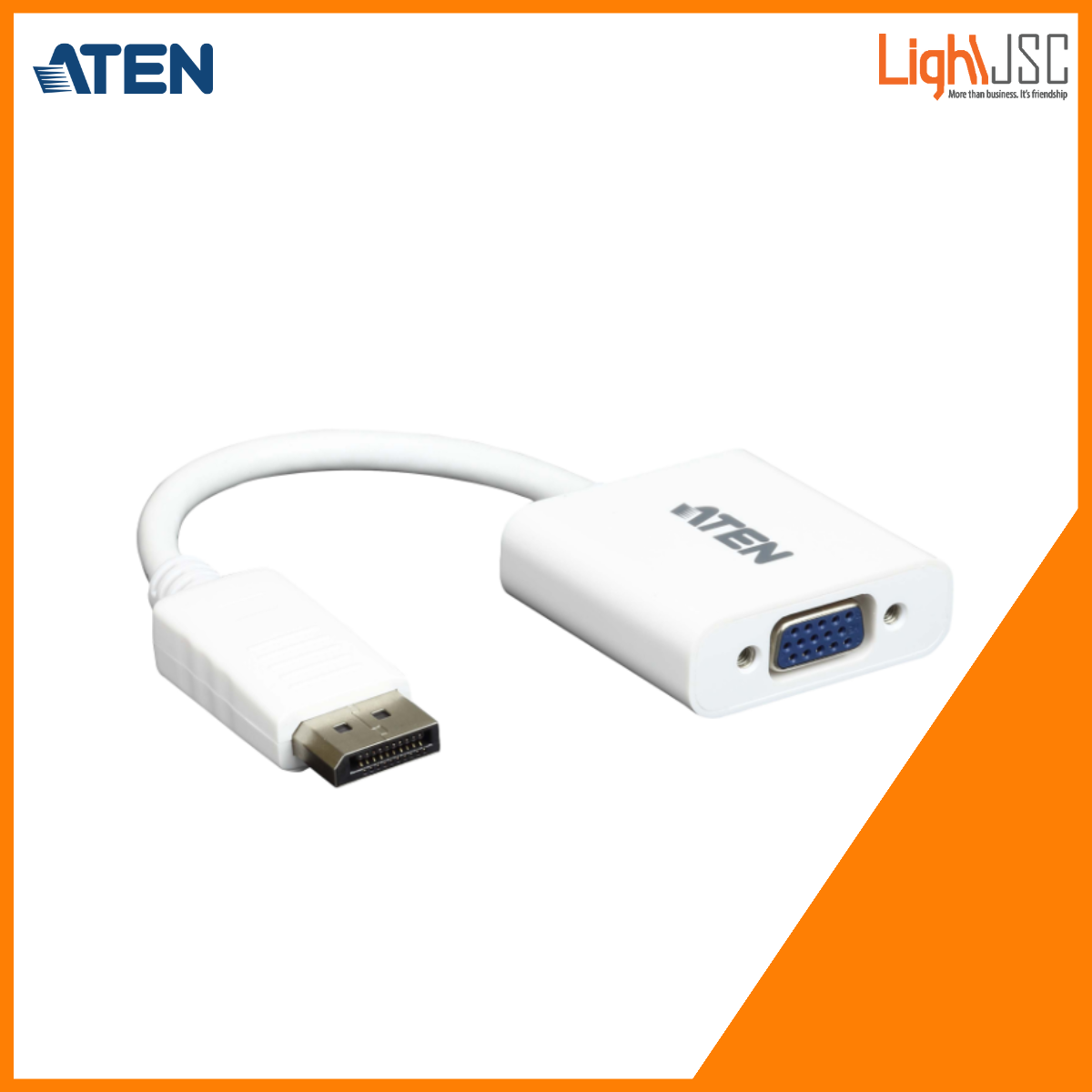

Aten VC925 DisplayPort to VGA Adapter
Supports VGA, SVGA, XGA, SXGA, UXGA, and resolutions up to 1920 x 1200 and 1080p, making it highly compatible across devices.
The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.

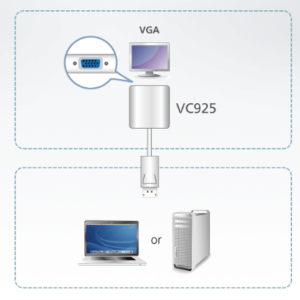

The VC925 is a DisplayPort to VGA adapter, allowing you to connect your device’s DisplayPort output to the VGA input of a TV or other display.
The VC925 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to WUXGA (1920×1200@60Hz).
| Video Input | |
| Interfaces | 1 x DisplayPort Male (White) |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Video | |
| Max. Pixel Clock | 165 MHz |
| Max. Resolution | Input up to 4096 x 2160@60Hz (4:4:4) Output up to 1920 x 1200 |
| Compliance | DP1.2 |
| Environmental | |
| Operating Temperature | 0 – 50 ºC |
| Storage Temperature | -20 – 60 ºC |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.04 kg ( 0.1 lb ) |
| Dimensions (L x W x H) | 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
