Aten-VB905-True-4K-DisplayPort-Booster
Aten-VB905-True-4K-DisplayPort-Booster

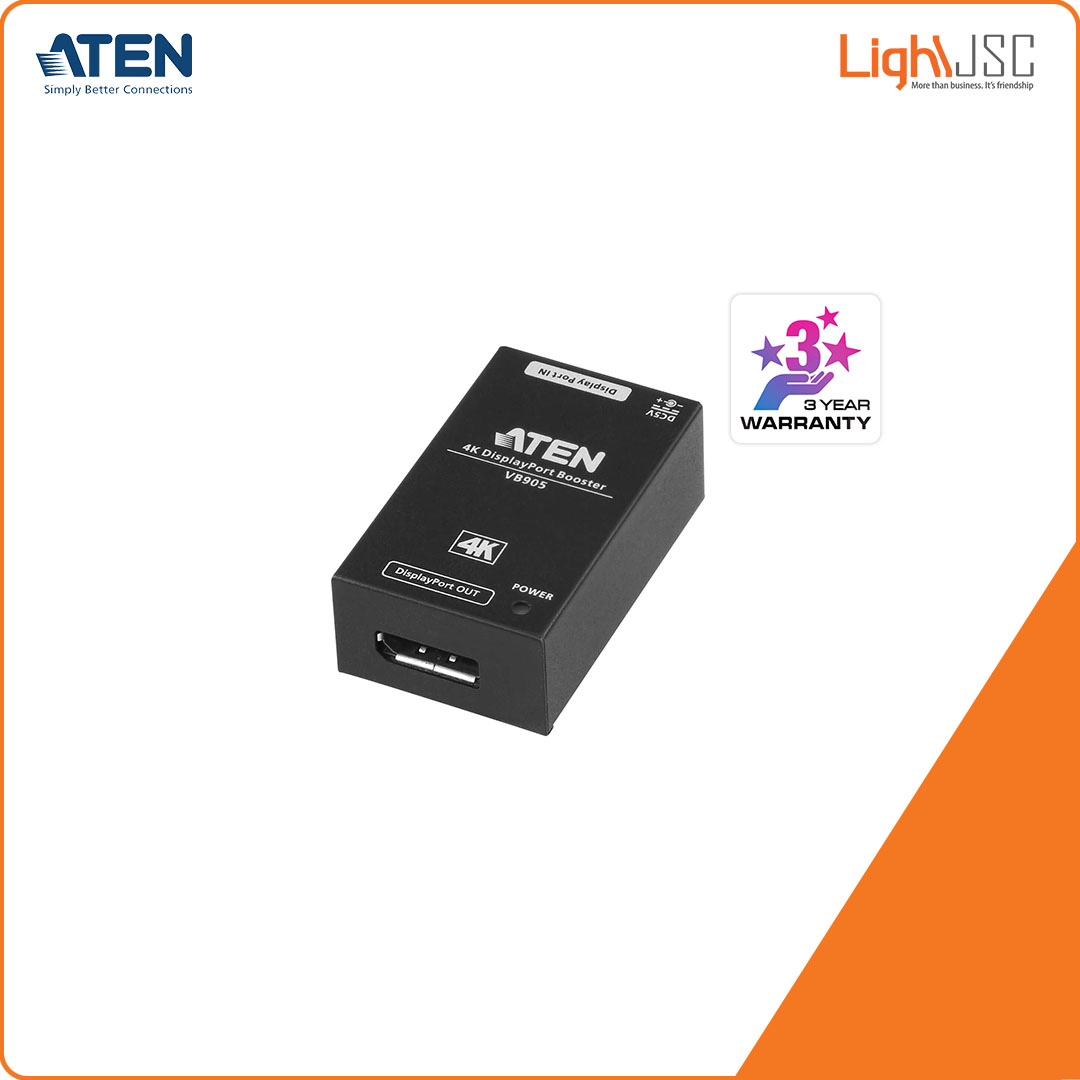

Aten VB905 True 4K DisplayPort Booster

  • Extends True 4K signal transmission up to 5 m
  • Compliant with DisplayPort 1.2a and HDCP 2.2
  • Supports HDR
  • Cascade 3 levels to extend True 4K signal up to 20 m
Categories: ,

Aten VB905 True 4K DisplayPort Booster extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.

The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellent fl exibility for managing both work and home settings.

Package Contents

  • 1x VB905 True 4K DisplayPort Booster
  • 1x Power Adapter
  • 1x User Instructions

Features

  • Extends True 4K signal transmission up to 5 m
  • Compliant with DisplayPort 1.2a and HDCP 2.2
  • Superior video quality – up to True 4K resolutions of 4096 x 2160 @ 60 Hz (4:4:4)
  • Supports HDR
  • Cascade 3 levels to extend True 4K signal up to 20 m
  • A single unit can be powered from the source device
  • Plug-and-play
  • Rack mountable

    Note: Longer transmission distance is possible with lower data rates. If you want to remain high quality transmission, please use higher quality cable.

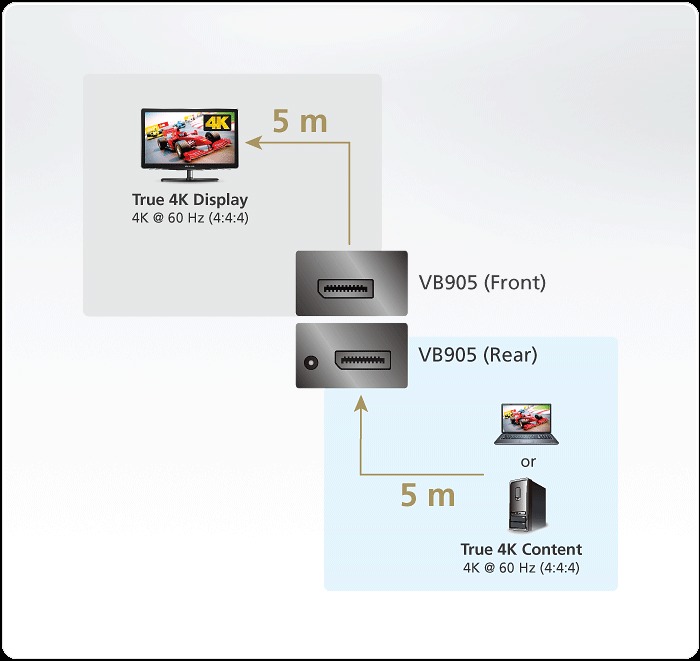

Diagram

Specifications

Video Input
Interfaces 1 x DisplayPort Female (20-pin)
Max. Distance Up to 4Kx2K@60Hz (4:4:4) / 5m
1080p@60Hz / 5m
Video Output
Interfaces 1 x DisplayPort Female (20-pin)
Max. Distance Up to 4Kx2K@60Hz (4:4:4) / 5m
1080p@60Hz / 5m
Video
Max. Data Rate 21.6 Gpbs (5.4 Gbps Per Lane)
Compliance DP1.2a
HDCP 2.2
Max. Resolution 4096 x 2160@60Hz (4:4:4)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:0.937W:4BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.05 kg ( 0.11 lb )
Dimensions (L x W x H) 5.84 x 3.53 x 2.06 cm
(2.3 x 1.39 x 0.81 in.)
Carton Lot 10 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
