Aten UC9020 StreamLive™ HD All-in-one Multi-channel AV Mixer

  • All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
  • Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started
  • Intuitive app – OnAir™ App for preview and program monitoring, change video layout in Full Screen/PBP/PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
  • Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
Categories: ,

Aten UC9020 StreamLive™ HD All-in-one Multi-channel AV Mixer

All-in-one, Made as Simple as Possible

Create a professional, dynamic multi-camera production with the UC9020 StreamLIVE™ HD. It is the simplest, all-in-one TV-quality livestreaming studio that is small in size and big on capability. Everything you need for livestreaming is ready to just plug-n-play. No computer, monitor, or complicated software settings necessary. Capture, stream, and switch between two full HD video inputs over the Internet and instantly take your video production to the next level.

Intuitive, from Start to Finish

Every inch of StreamLIVE™ HD has been optimized for the easiest operation, including the hardware control panel and the powerful yet sophisticated control APP, that turns your iPad* into a touch interface for controlling, preview monitoring, real-time editing, and arranging multi-elements into program mixing. You can switch and mix video/audio, change settings and effects, and save up to 8 scenes for quick switching.



For detailed iPad compatibility please refer to specifications.

Go LIVE, to Every Major Platform Anywhere

With the built-in encoder and streaming server, all you need to do is connect to your video sources and network. StreamLIVE™ HD is compatible with every major platform and can livestream to two platforms at the same time virtually anywhere, including Facebook, YouTube, Vimeo, Livestream or any custom RTMP destination, all in high-quality full HD.



Facebook . Youtube . Live Stories . Periscope . Meerkat . YouKnow . Twitter . Vimeo

Goodbye, Post-Production

Your iPad becomes your personal video editing suite. With the ATEN OnAir™ App, you can design and preset up to 8 custom scenes with the intuitive touchscreen interface and custom scene editor. Combine, crop, and scale video to make outstanding PnP layouts. Add transparent png images, backgrounds, and text overlays with professional-looking effects. The scene presets can be exported and shared with your community to other StreamLIVE™ HD systems.

1.9kg, That’s Everything You Need for Streaming

Designed to simplify your video production workflow, StreamLIVE™ HD is not only all-in-one to reduce equipment and cabling that you need to carry for streaming, but also compact in size with extreme portability. It is just so easy to setup and transport. You will be relieved from heavy equipment and complex setups. Use StreamLIVE™ HD whenever you need to stream and it will become your indispensable companion for live video production.

Stream Capture for Easy Stream Recordings

ATEN Stream to USB software lets you add StreamLIVE’s video feed to your computer via LAN network for enhancing your computer-based post-production workflow, such as online meetings, content creation, and even recordings. Simply make sure your computer is using the same network as StreamLIVE and you can go live, no need to connect to a USB capture card.

Watch the UC9020 How-To Video Series!
To help you better learn how to use the ATEN UC9020 StreamLIVE™ HD, we’ve created a series of videos with tips and hands-on footage. Topics include:

1. What is UC9020 StreamLive HD?
2. A brief look at the ATEN UC9020’s hardware and software
3. How to use ATEN UC9020 StreamLIVE™ HD with a two-camera setup
4. How to edit scene presets with the UC9020 StreamLIVE HD
5. How to get the stream key for Facebook and YouTube on the ATEN UC9020 StreamLIVE HD
6. Learn how to adjust the settings in the ATEN UC9020 OnAir app
7. Which camera to use with the ATEN UC9020 StreamLIVE HD?

Package Contents

  • 1x StreamLIVE™ HD
  • 1x USB-A to USB-C Cable (parts no.: LIN6-09B1-C11G)
  • 1x USB-A to USB-A Cable (parts no.: LIN5-04U1-U1HG)
  • 1x AC Power Cable
  • 1x User Instructions

Features

  • The StreamLIVE HD is a portable, all-in-one, multi-channel audio / video mixer device that integrates an 1080p video capture, video recorder, video switch, stream broadcaster, video converter, 4K video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE HD makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook, and Twitch.

    For added convenience, the StreamLIVE HD features an intuitive app – OnAir™ App, making it easy to monitor, edit image layouts, and adjust PIP settings. The StreamLIVE HD is PC and software-free, and with its welldesigned control panel, it makes livestreaming operations smooth and effortless. Users can even preview video and monitor audio levels before going live with their web broadcast! To get started, simply connect audio/video sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.

    For enterprises in need of delivering remote presentations on Skype, Zoom, MS Teams, OBS, or other platforms for meetings, online events, and webinars alike, the StreamLIVE HD works with ATEN Stream to USB software, which helps convert streams into USB webcam signals. Moreover, the software enables operators to monitor the live production coming from all StreamLIVE HDs in a media pool and to broadcast each stream to the right destination.

    Whether users are capturing, editing or streaming, the StreamLIVE HD with its ergonomic and practical design, is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE HD addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.

    • All-in-one design to simplify streaming workfl ow – integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
    • Professional-quality live streaming to global audiences by any CDN platform. With a low entry threshold, even entry-level users can quickly get started
    • 1080p recording – features media recording that can be used to record a program and save recordings directly to a connected external hard drive via USB
    • Intuitive app for preview and program monitoring, change video layout in Full Screen / PBP / PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
    • Storyboard-like management – presets up to 8 scenes for later while streaming and during performances to reduce the need to interact with hardware
    • Compact mixer control panel – switches and mixes between multiple video & audio sources with the help of easily identifi able luminous keys
    • Fanless and optimized thermal air fl ow system for quiet operation
    • Multitask designed handle-stand to enhance portability and ergonomic comfort angle
    • Works with ATEN Stream to USB software – converts streams from multiple StreamLIVE HDs into USB webcam signals for delivering remote presentations on Skype, Zoom, MS Teams, OBS and more

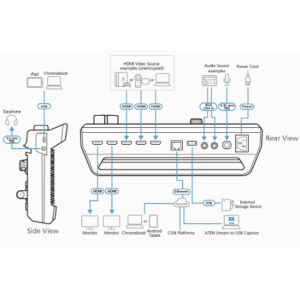

Diagram

Specifications

Video Input
Interfaces 1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
2 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )
Video Output
Interfaces 1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)
Video Sampling 4:2:2 8-bit
Color Space 4:2:2 YUV
Video Resolution HDMI 1 Input:
VGA(640×480@60), 480p60/50/30/25, SVGA(800×600@60), XGA(1024×768@60), 720p60/50/30/25, SXGA(1280×1024@60), WXGA+(1440×900@60), UXGA(1600×1200@60 RB), WUXGA+(1680×1050@60), 1080p60/50/30/25, 2160p60/50/30/25

HDMI 2A/2B Input:*
VGA(640×480@60), 480p60/50/30/25, SVGA(800×600@60), XGA(1024×768@60), 720p60/50/30/25, SXGA(1280×1024@60), WXGA+(1440×900@60), UXGA(1600×1200@60 RB), 1080p60/50/30/25

*Only selected port show video, another one show non-video photo or graph.

SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25

HDMI Loop-Through Output:
VGA(640×480@60), 480p60/50/30/25, SVGA(800×600@60), XGA(1024×768@60), 720p60/50/30/25, SXGA(1280×1024@60), WXGA+(1440×900@60), UXGA(1600×1200@60 RB), WUXGA+(1680×1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
Interfaces HDMI captured inputs (stereo)
1 x Mic input, 1/4″ TRS jack (dual mono)
1 x Line input, RCA jack, signal level: -10 dBV
Audio Outputs
Interfaces HDMI outputs (stereo)
1x 1/8″ TRS jack (stereo)
Network Protocol Dual-stream encoder supports direct live streaming to CDN sever over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
——————————————————-
Video Encoding

Format: H.264
Bit rate: 512Kbps~10Mbps
Color format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
——————————————————————-
Audio Encoding

Format: AAC
Sampling Rate: 48kHz
Bit rate: 128kbps
Recording Storage Max. video resolution: 1080p30/25
File format：MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space
Connection 1x USB 3.1 Gen1 Type-A Female (Blue)
1x USB2.0 Type-A(White)
1x GbE LAN port
Environmental
Operating Temperature 0 – 40 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 – 80% RH, Non-Condensing
OS Support • iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power Rating IEC C14, 100-240 Vac (w/250V fuse)
Power Consumption AC110V:12.9W:80BTU
AC220V:12.7W:79BTU
Physical Properties
Housing Metal
Weight 1.89 kg ( 4.16 lb )
Dimensions (L x W x H) 28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
