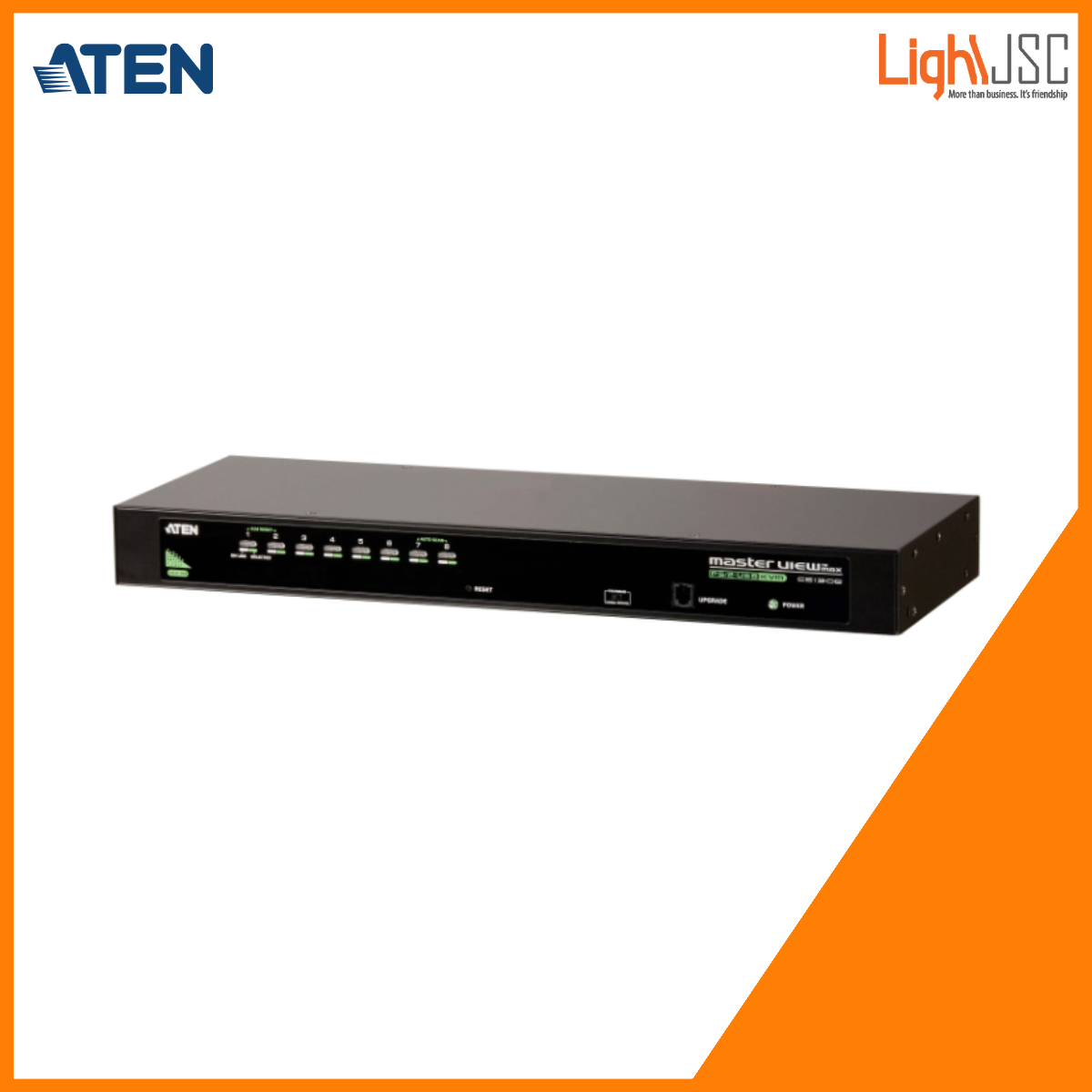

Aten CS1308 8-Port PS/2-USB VGA KVM Switch

One USB-PS/2 console controls 8 computers; Cascade up to 2 levels – control up to 64 computers
Broadcast mode – operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.

Package Contents

1x CS1308 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x Power Adapter
1x User Instructions

Diagram

Specifications

Computer Connections
Direct	8
Maximum	64 (via Cascade)
Port Selection	OSD, Hotkey, Pushbutton
Connectors
Console Ports	1 x SPHD-18 Male (Yellow)
KVM Ports	8 x SPHD-15 Female (Yellow)
Firmware Upgrade	1 x RJ-11 Female (Black)
Power	1 x DC Jack
Switches
Ports	8 x Pushbutton
Firmware Upgrade	1 x Slide
LEDs
Online	8 (Orange)
Selected	8 (Green)
Power	1 (Dark Green)
Emulation
Keyboard / Mouse	PS/2, USB
Video	2048 x 1536; DDC2B
Scan Interval	1 – 255 Seconds (Default: 5 secs)
Power Consumption	DC5.3V:2.34W:19BTU
Environmental
Operating Temperature	0-50˚C
Storage Temperature	-20-60˚C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	1.89 kg ( 4.16 lb )
Dimensions (L x W x H)	43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
