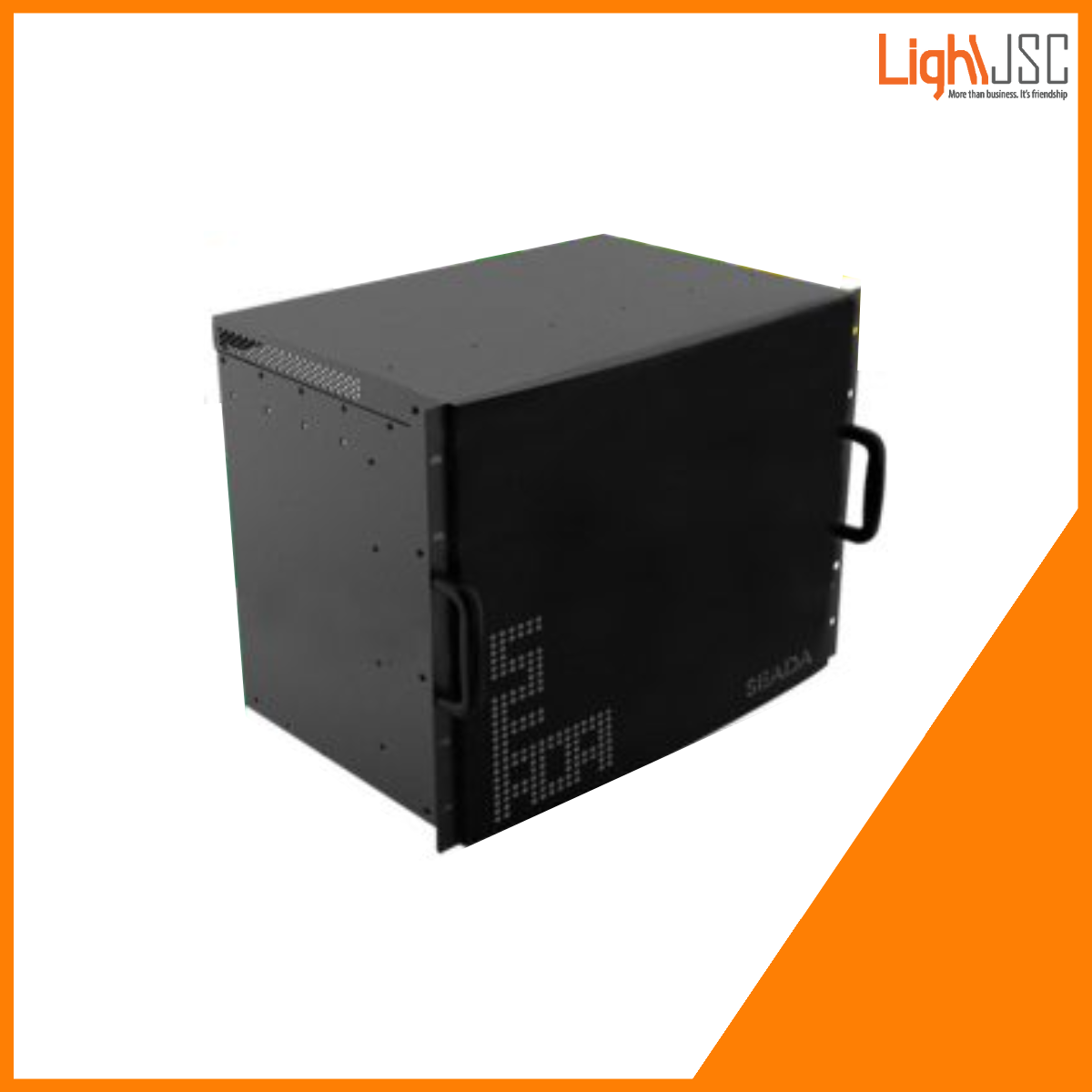

Solarwall SW4036 is video wall controller designed for medium to large size video wall projects. With its ability to support maximum 36 displays, it is an ideal video wall system for large digital signage, surveillance, command & control rooms and other video wall applications.
Key features of Seada SW4036
|
|
Descreptions of Seada SW4036
With its 14U chassis, SW4036 is able to capture 96 HD or 384 SD video inputs and output them onto a video wall with up to 36 displays simultaneously. It is able to capture all sorts of digital and analog signals: DVI, HDMI, 3G/HD-SDI, Component and CVBS signals. Besides its ability of capturing 4K content, it also supports to decode and capture IP streaming signals in the very same controller. HDCP compliance allows SW4036 to capture and display content-protected HD signals.
SW4036 is flexible in output and input configuration. It can be customised for the customers and also easy to be upgraded simply by changing the input/output cards in the chassis.
Specifitions of Seada SW4036
| CONTROLLER CHASSIS | 14U 19” ANST/EIA RS-310C STANDARD INDUSTRIAL CHASSIS |
|---|---|
| DIMENSIONS | 482*380*620 |
| MAX INPUT CHANNEL | 96 HD CAPTURE CHANNELS OR 384 CVBS CAPTURE |
| INPUT FORMAT | DVI/HDMI/VGA, SDI, VCBS, DL_DVI, HDBASET, FIBER OPTICAL, IP STREAMING |
| MAX OUTPUT CHANNEL | 36 DISPAY CHANNELS |
| OUTPUT FORMAT | DVI/HDMI/VGA, SDI, HDBASET, FIBER OPTICAL |
| HDCP SUPPORT | YES |
| POWER SUPPLY | RPSU |
| INPUT VOLTAGE | AC 110V TO 240V, 50/60HZ |
| OPERATION SYSTEM | WINDOWS2000/XP/VISTA/7/8 |
| WARRANTY | 2 YEARS |
| OPERATING TEMPERATURE RANGE | 0/40 DEGREES CENTIGRADE |
| OPERATING HUMIDITY RANGE | 10%~90% NON-CONDENSING |
| STORAGE TEMPERATURE RANGE | 10~60 DEGREES CENTIGRADE |
| STORAGE HUMIDITY RANGE | 10%~90% |
| CONTROL INTERFACE | RS232 OR ETHERNET PORT |
