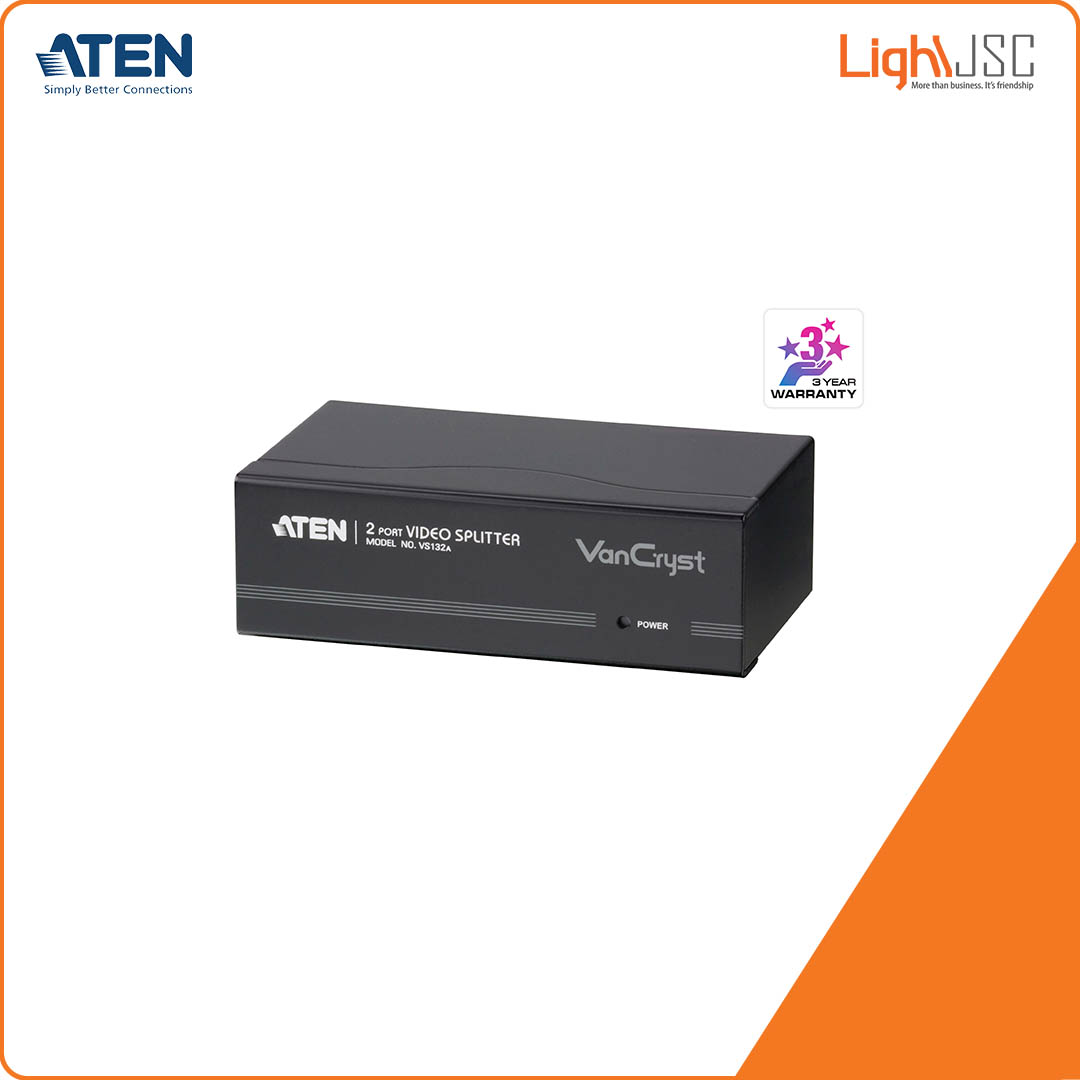

Aten VS132A 2-Port VGA Splitter (450MHz)

  • One video input to 2 video outputs
  • Superior video quality – up to 2048 x 1536
  • Supports up to 450 MHz bandwidth
  • Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
Categories: ,

Aten VS132A 2-Port VGA Splitter (450MHz) is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.

To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.

Applications include:
• Financial – the remote display of stock market information
• Education – the remote display of lectures and lessons to halls and classrooms
• Business – the remote display of addresses to overflow rooms; video conferencing; and demos

Package Contents

  • 1x VS132A Video Splitter
  • 1x Power Adapter
  • 1x User Instructions

Features

  • One video input to 2 video outputs
  • Supports up to 450 MHz bandwidth
  • Cascadable to 3 levels – provides up to 8 video signals
  • Long distance transmission – up to 30m *
  • Superior video quality – up to 2048 x 1536
  • Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors
  • Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
  • All-metal casing

    * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

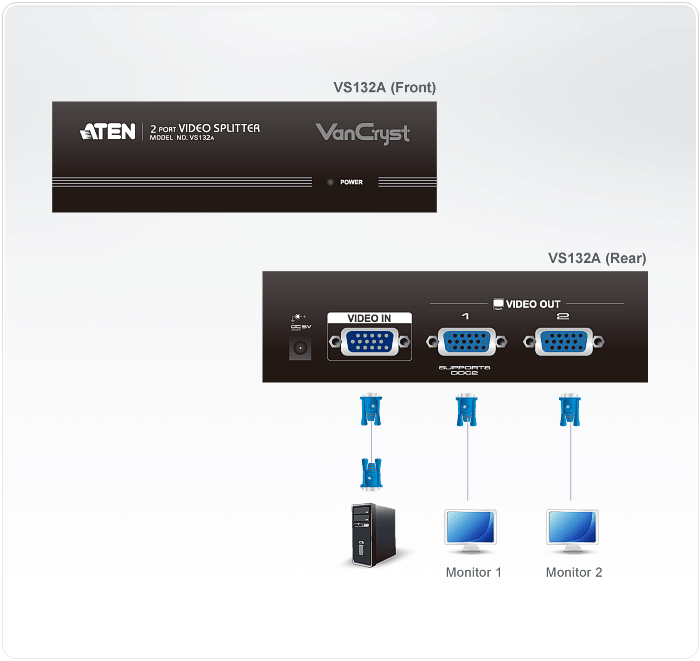

Diagram

Specifications

Video Input

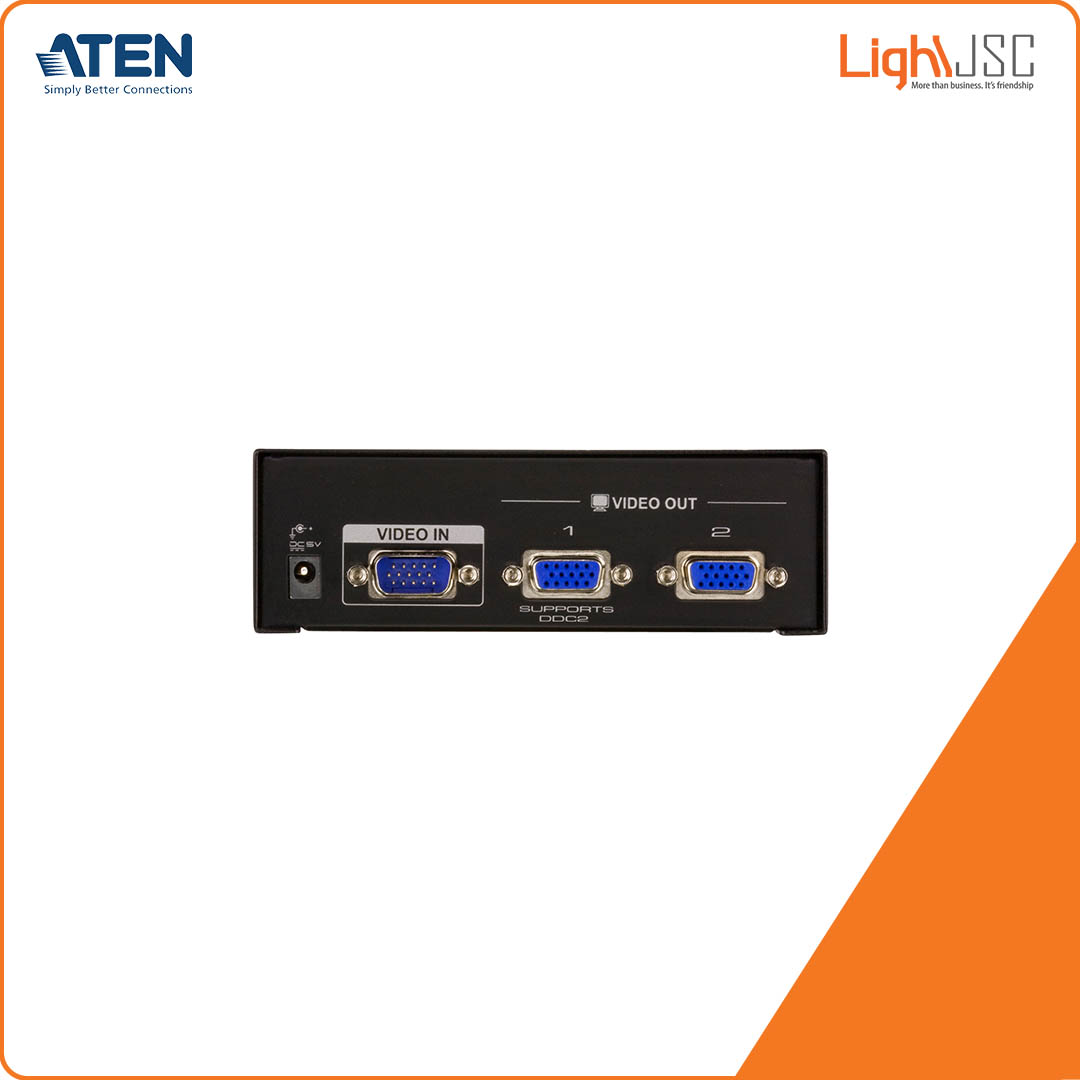

Interfaces 1 x HDB-15 Male (Blue)
Impedance 75 Ω
Max. Distance 1.8 m
Video Output
Interfaces 2 x HDB-15 Female (Blue)
Impedance 75 Ω
Video
Max. Bandwidth 450 MHz
Max. Resolution Up to 2048 x 1536
Max. Distance Up to 30 m
Connectors
Power 1 x DC Jack
Power Consumption DC5V:0.62W:3BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.42 kg ( 0.93 lb )
Dimensions (L x W x H) 13.00 x 7.51 x 4.40 cm
(5.12 x 2.96 x 1.73 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
