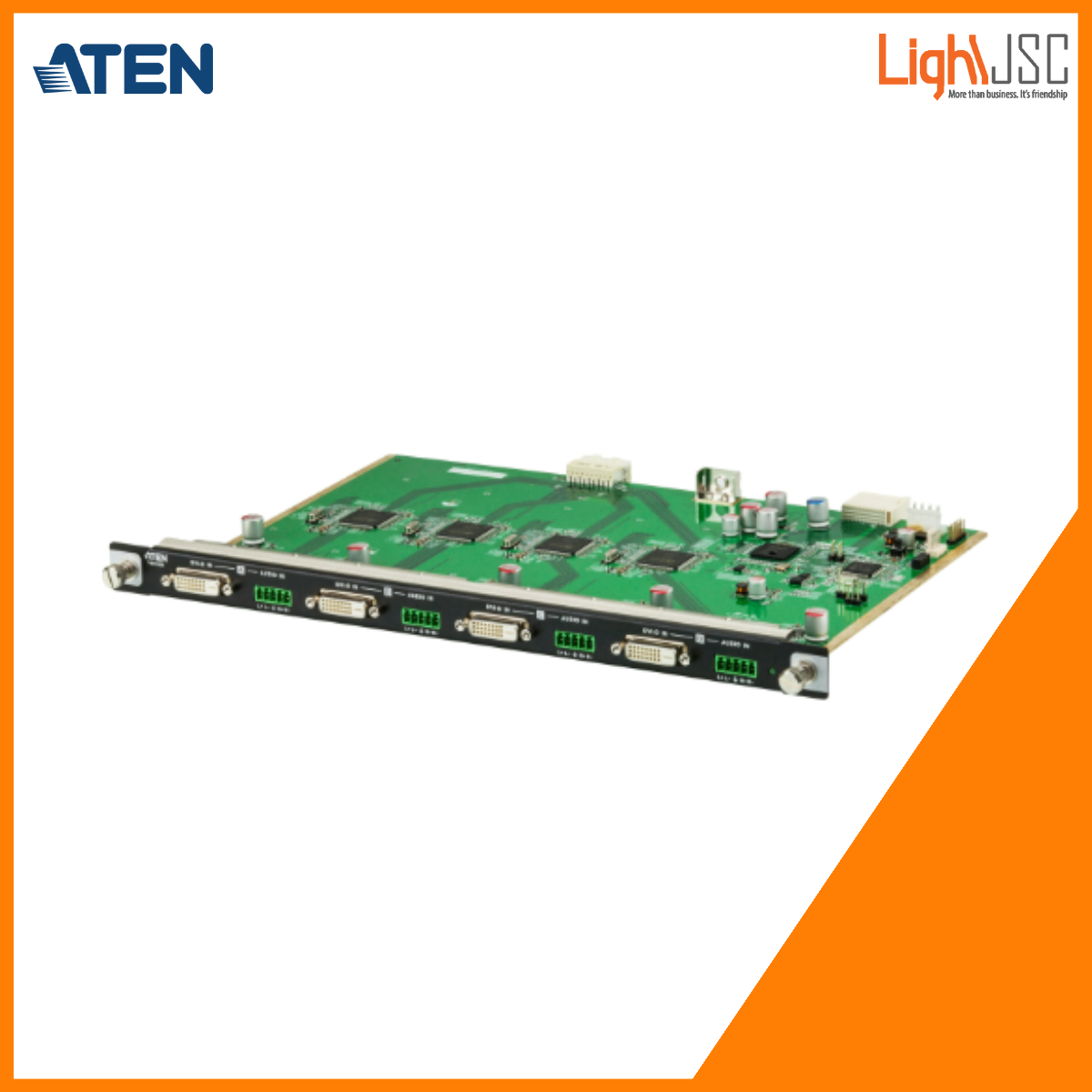

Aten VM7604A 4-Port DVI Input Board

HDMI (3D, Deep Color); HDCP 1.4 Compatible
EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Hot-swappable design for easy integration of I/O boards

ATEN VM7604A 4-Port HDMI Input Board offers an easy way to route any of 4 audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.

The VM7604A also supports HDMI audio can be extracted and stereo audio that can be embedded.

Package Contents

1x VM7604A 4-Port HDMI Input Board
4x Terminal Blocks
1x User Instructions

Features

Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
HDMI (3D, Deep Color); HDCP 1.4 Compatible
Consumer Electronics Control (CEC) support
EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
Built-in EDID wizard – provides an easy way to customized EDID settings
Hot-swappable design for easy integration of I/O boards
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

Diagram

Specifications

Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	Up to 5m
Video
Max. Data Rate	6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1920 x 1080
Audio
Input	4 x Captive Screw Connector, 5 Pole *Audio signal type: stereo, balanced/unbalanced.
Power Consumption	7W:33BTU
Environmental
Operating Temperature	0 – 40°C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.58 kg ( 1.28 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
Carton Lot	2 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
