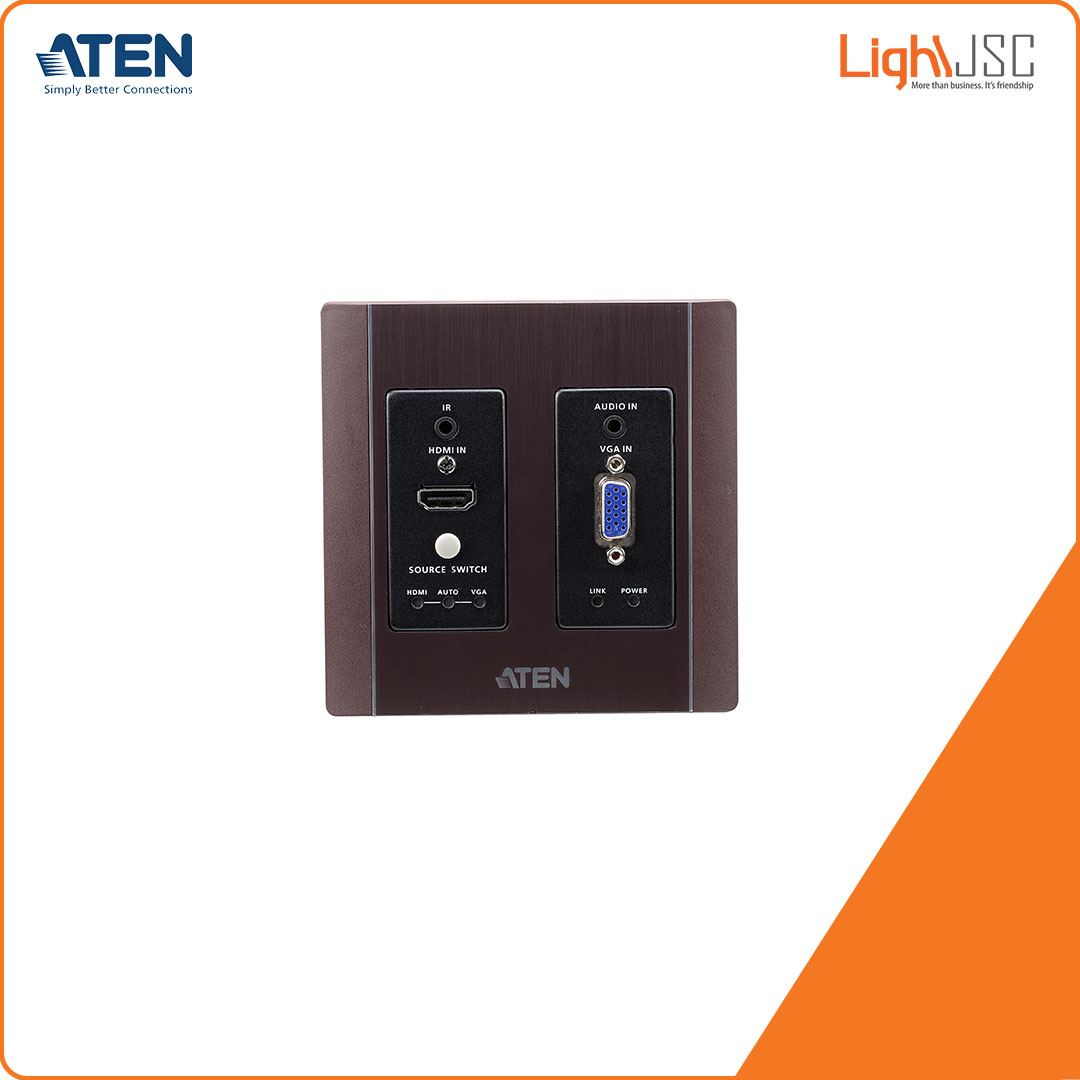

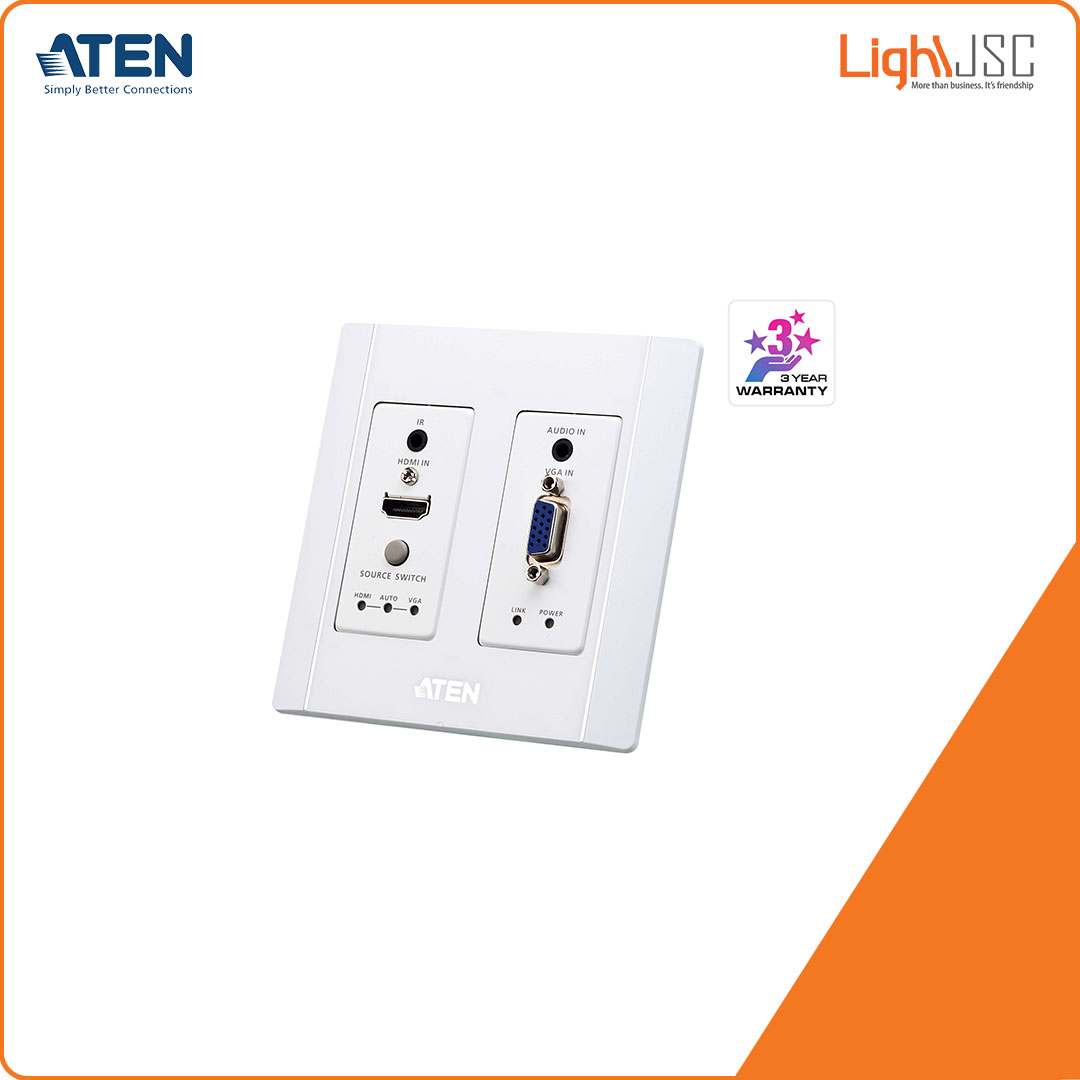

For mounting in standard 2-gang junction boxes, the VE2812AUST is a wall plate transmitter for sending VGA (with audio) and HDMI, as well as IR/RS-232 signals, up to 100 m over a single Cat 5e/6/6a cable that is designed to merge with the clean and elegant decor of modernmeeting rooms, boardrooms, conference rooms,classrooms, and lecture halls.
Ready for Plug-and-Play
Designed to sleekly immerse with installation surfaces with a hidden snap design for its face plate, the VE2812AUST supports legacy and popular AV interfaces like VGA, HDMI, and stereo audio so that you’re ready to connect any device that is brought into the room.
4K@100m Extended Transmission
Delivers superior video quality up to 4K@100m and 1080p@150m via a single Cat 6a / ATEN2L-2910Cat 6 cable, extending connections to where ever your output devices are located. Easily pair from our range of HDBaseT Receivers to support diverse display interfaces such as DisplayPort, HDMI, and DVI.
Multiple, Efficient Switching Options
The Source Switch button enables instant switching when required, while Auto Switch Mode supports automatic switching to a newly plugged-in source and instant switching back to the previous source on disconnection. Also supports RS-232 for switching via alternate control interfaces.
Convenient Power Access
Supports Power over HDBaseT (PoH) and allows powering from another Power Source Equipment (PSE) device. No more worries about extending or installing power outlets.
AV Extension and More
In addition to transmitting video and audio, the VE2812AUST maximizesHDBaseT™technology capabilities and offers IR and RS-232 Channels to control devices located in hard-to-reach areas as well as streamline the user operation experience.

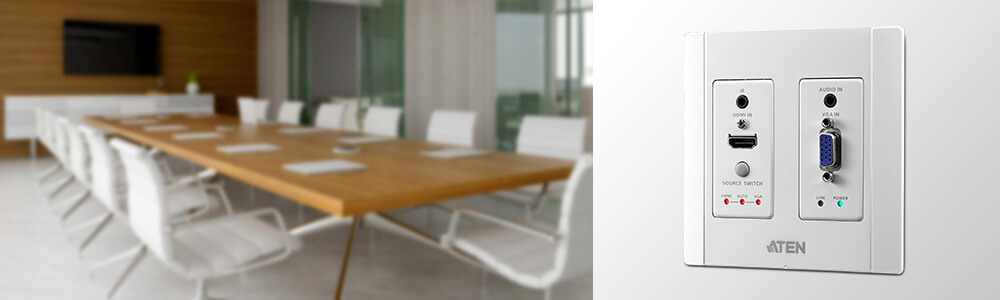

Perfectly Blends with the Environment
Comes with a stylish and sleek design for you to elegantly immerse extensions into the décor of any room. A brown* option is also available for customization to complement even the most refined installation environment.
*Note: The Brown color option is made-to-order.
- 1x VE2812AUST HDMI & VGA HDBaseT Transmitter with US Wall Plate / PoH
- 1x 3 Pin RS-232 Terminal Block
- 1x 2 Pin Power Terminal Block
- 1x Faceplate
- 1x Power Adapter
- 1x User Instructions
