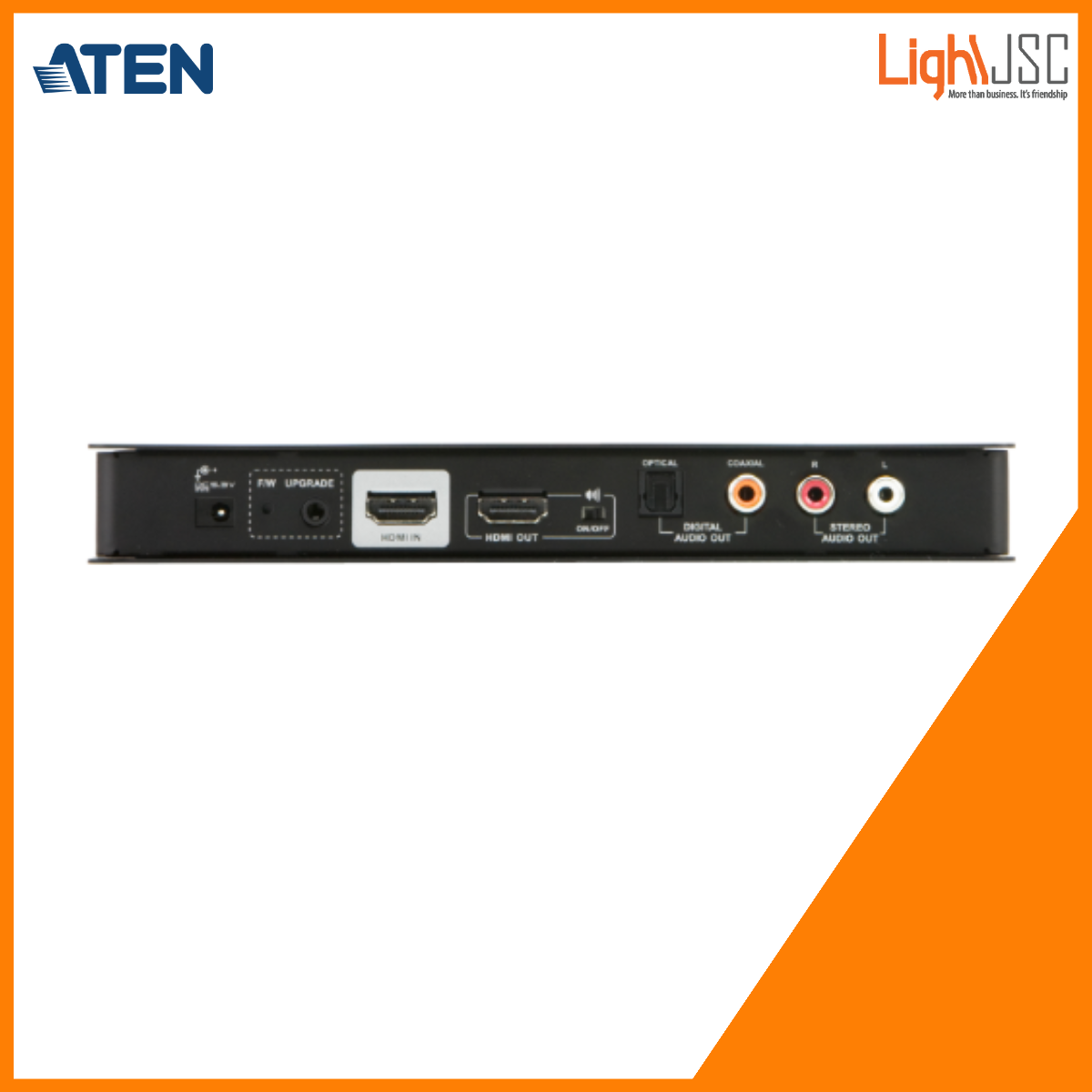

Aten VC880 HDMI Repeater Plus Audio De-embedder

  • Extracts HDMI audio signal and outputs as additional audio source
  • Supports optical / coaxial digital audio and analog stereo audio*
  • Superior Video Quality – up to 1920×1080 (1080p)
  • Repeats HDMI input signal up to 15 meters
Categories: ,

Aten VC880 HDMI Repeater Plus Audio De-embedder is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.

Package Contents

  • 1x VC840 HDMI to 3G/HD/SD-SDI Converter
  • 1x Power Adapter
  • 1x User Instructions

Features

  • Repeats HDMI input signal up to 15 meters
  • Extracts HDMI audio signal and outputs as additional audio source
  • Supports optical / coaxial digital audio and analog stereo audio*
  • HDCP 1.1 compatible
  • Superior Video Quality – up to 1920×1080 (1080p)
  • Firmware upgradable
  • CH2/CH5.1/Auto mode audio channel selection
  • HDMI (3D)
  • Supports Dolby True HD and DTS HD Master Audio
  • Supports Audio on/off switch for HDMI output
  • Expandable to three levels – provides three levels of audio output for one HDMI at distance up to 45 m
  • Integrates with Apple TV for the perfect home entertainment system
    *Supported Audio Input Channels

    Source audio input channel
    Audio Output Stereo
    (LPCM 2)    		 DTS 5.1
    Dolby 5.1    		 LPCM 5.1 DTS 7.1
    Dolby 7.1    		 LPCM 7.1
    TosLink Stereo DTS 5.1
    Dolby 5.1    		 2 channel
    (Front Right & FrontLeft)    		 Non support 2 channel
    (Front Right & FrontLeft)
    Coaxial Stereo DTS 5.1
    Dolby 5.1    		 2 channel
    (Front Right & FrontLeft)    		 Non support 2 channel
    (Front Right & FrontLeft)
    Stereo Stereo Non support 2 channel
    (Front Right & FrontLeft    		 Non support 2 channel
    (Front Right & FrontLeft)

Diagram

Specifications

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3m at 1920*1080@60 (4:4:4)
Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 15m at 1920*1080@60 (4:4:4)
Video
Max. Data Rate 6.75 Gps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP Compatible
Max. Resolution Up to 1920 x 1080
Audio
Output 1 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange);
2 x RCA (Red/White);
Connectors
Power 1 x DC Jack
Power Consumption DC5.3V:2.25W:11BTU
Environmental
Operating Temperature 0 – 50 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 – 80% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.46 kg ( 1.01 lb )
Dimensions (L x W x H) 20.00 x 8.20 x 2.50 cm
(7.87 x 3.23 x 0.98 in.)
Carton Lot 20 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
