Aten VC810 HDMI to VGA Adapter
Supports resolutions up to 1920 x 1200 and 1080p, as well as widescreen formats, making it highly compatible across devices.
The unique ultra-mini design of VC810 makes it super portable, easy to connect, and convenient to use.

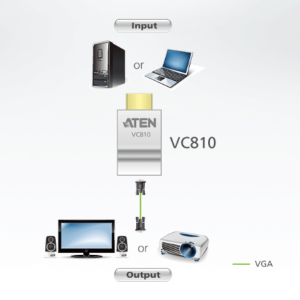

The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed – simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
| Video Input | |
| Interfaces | 1 x HDMI Type A Male (Black) |
| Impedance | 100 Ω |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Black) |
| Impedance | 75 Ω |
| Video | |
| Max. Pixel Clock | 200 MHz |
| Max. Resolution | Up to 1920 x 1080/60Hz |
| Environmental | |
| Operating Temperature | 0 – 60 ºC |
| Storage Temperature | -10 – 70 ºC |
| Humidity | 40 – 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.01 kg ( 0.02 lb ) |
| Dimensions (L x W x H) | 4.55 x 2.30 x 1.48 cm (1.79 x 0.91 x 0.58 in.) |
| Carton Lot | 40 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
