Aten UE3310 10M USB 3.1 Gen1 Extender

Supports USB 3.1 Gen1 Specification (5 Gbps)
Ultra slim design and unique locker head design
Daisy-chainable, maximum distance of up to 50 m
Additional power adapter included

Categories: Aten Pro Audio/Video, GIẢI PHÁP VIDEO/ AV

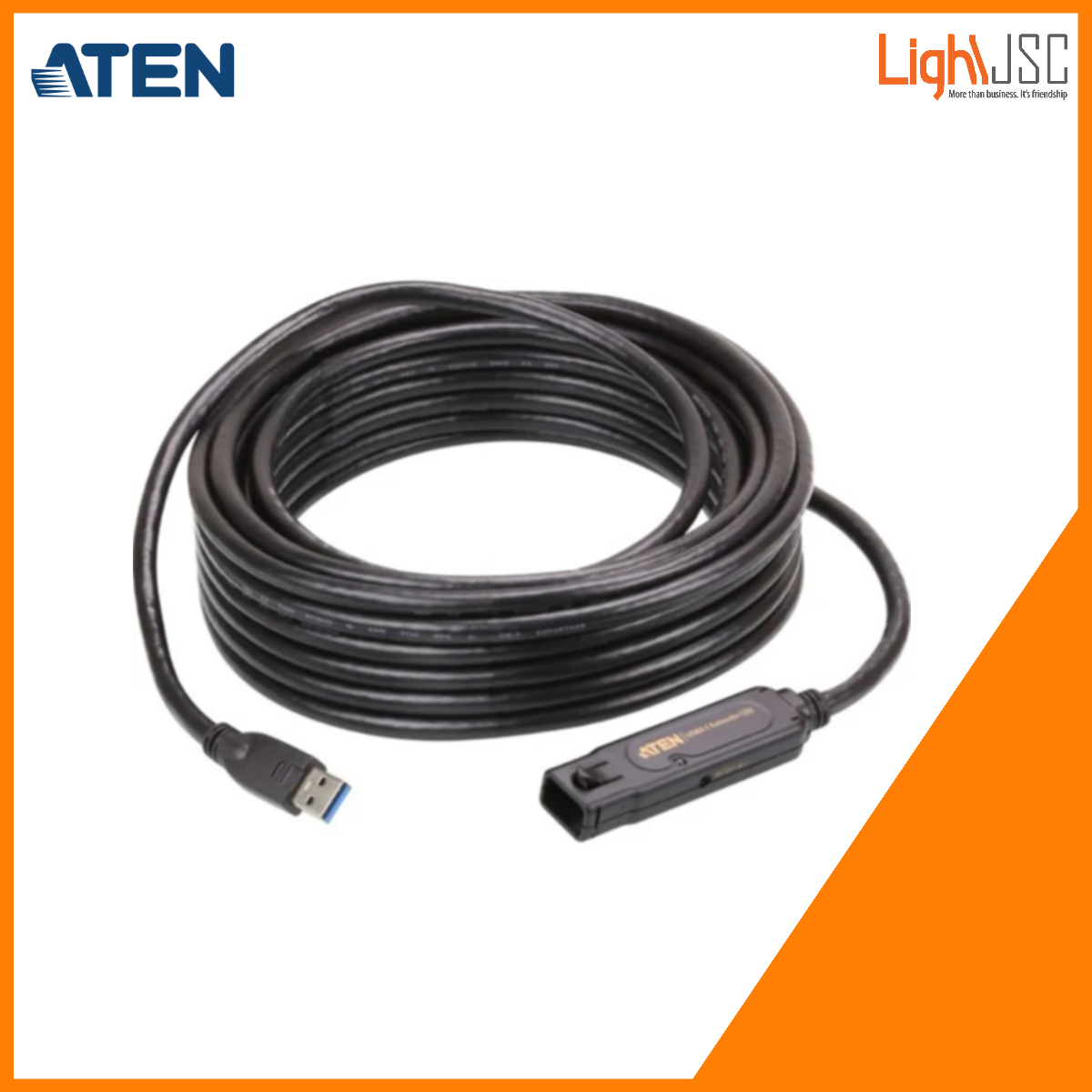

Aten UE3310 10M USB 3.1 Gen1 Extender allows users to extend the distance between the computer and USB devices up to 10 m. The UE3310 provides a reliable, high performance data transmission that utilizes USB 3.1 Gen1 data bandwidth up to 5Gb/s and also backward compatible with USB 2.0/1.1 standard. It’s plug and play and no additional software installation required, easy to deploy and operate on the fields.

The UE3310 provides a quick and high quality cost effective solution for all kinds of professional environments like: hospitals, factories, or business facilities.

Package Contents

1x UE3310 USB 3.1 Gen1 Extender Cable
1x AC Power Adapter
1x USB Extension Cable

Features

Supports USB 3.1 Gen1 Specification (5 Gbps)
Ultra slim design and unique locker head design
Daisy-chainable, maximum distance of up to 50 m
Multiplatform support – Windows and Mac
Additional power adapter included

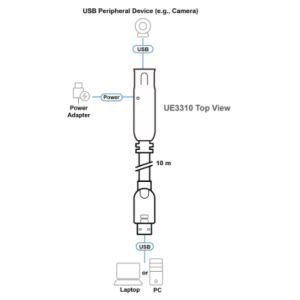

Diagram

Specifications

Connectors
USB Port	1 x USB 3.1 Gen1 Type A Male
Downstream	1 x USB 3.1 Gen1 Type A Female
USB Specification	USB 3.1 Gen1 / 2.0 / 1.1 for Super / High / Full or Low speed
Cable Length	10 m
Data Rate	Up to 5 Gbps
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.76 kg ( 1.67 lb )
Dimensions (L x W x H)	8.19 x 2.22 x 1.75 cm (3.22 x 0.87 x 0.69 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
