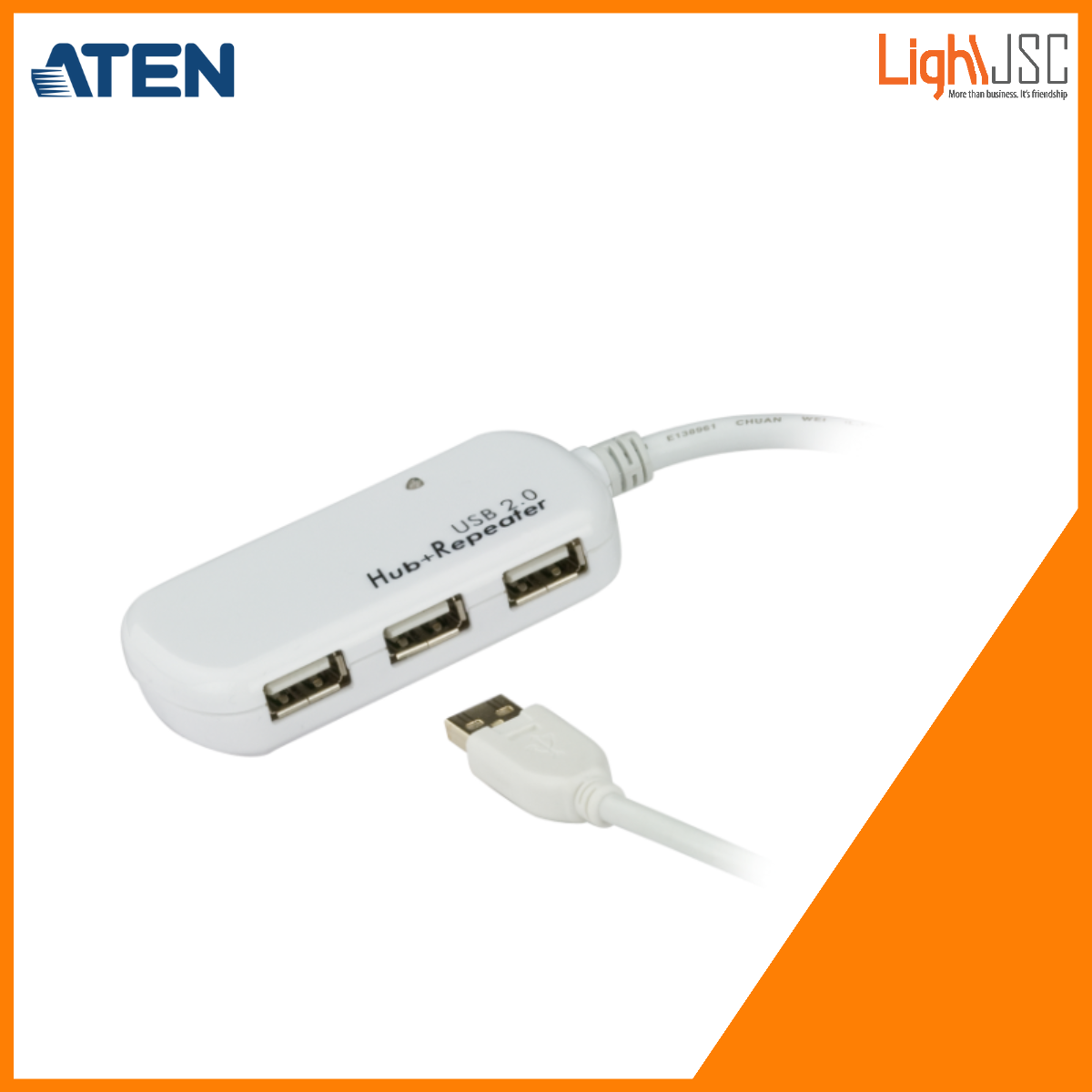

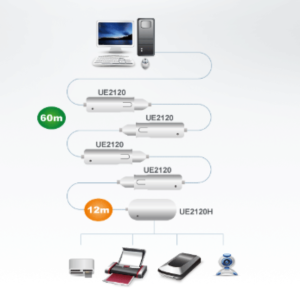

Aten UE2120H 12M 4 Port USB 2.0 Extender (Daisy-chaining up to 60m) allows users to extend the distance between a computer and USB device(s) up to 12 meters via the active extender hub. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards. Up to 4 extender cables (UE2120) and 1 Extender Hub (UE2120H) can be chained together, so that cable distance is increased by up to 60 meters. meters.
| Connectors | |
| USB Port | 1 x USB Type-A Male |
| Downstream | 4 x USB Type-A Female |
| Power | 1 x DC 5V (Optional) |
| LEDs | 1 (Green) |
| USB Specification | 2.0 / 1.1 For High / Full / Low Speed |
| Cable Length | 12 m |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.63 kg ( 1.39 lb ) |
| Dimensions (L x W x H) | 8.20 x 4.10 x 1.70 cm (3.23 x 1.61 x 0.67 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
