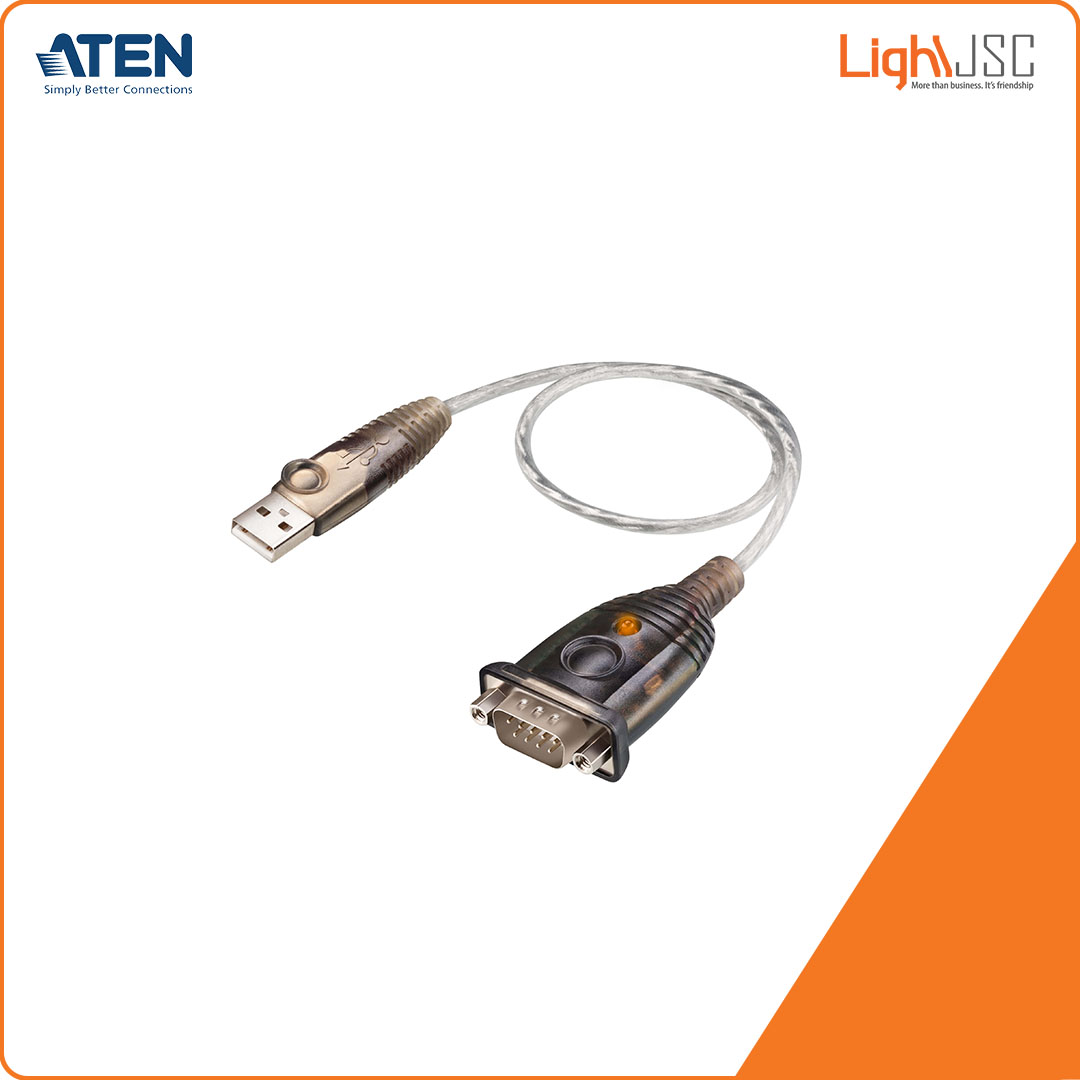

Aten UC232A1 1M USB to RS-232 Converter

  • Support the RS232 Serial interface
  • Full compliance with the USB Specification
  • Up to 921.6 Kbps data transfer rate
  • Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter
Categories: ,

Aten UC232A1 1M USB to RS-232 Converter is the ideal accessory for laptop and desktop computers that do not have a COM or DB9 serial port. Supporting both PC and Mac systems with baud rates up to 921.6 Kbps for rapid performance, it offers a convenient connectivity solution for industrial automation systems, scientific instruments, point of sale systems, and other specialized industrial and consumer applications.

The UC232A series now supports mobile devices as a computing host (Android 3.2 and above). The UC232A series SDK is available for download in the Support and Downloads section. To download the mobile demo app from the Google Play store, please click on or scan this QRCode.

Package Contents

  • 1x USB-to-Serial Converter
  • 1x User Instructions

Features

  • Support the RS232 Serial interface
  • Full compliance with the USB Specification
  • Up to 921.6 Kbps data transfer rate
  • Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter
  • OS Compatibility: Windows, Mac, Linux

Diagram

Specifications

Connectors
USB Port 1 x USB Type A Male (White)
Serial 1 x DB-9 Male (Silver)
Data Rate Up to 921.6 Kbps
Cable Length 1m
LEDs Power (Orange)
Power Mode Bus Powered
USB Specification USB compliant
Environmental
Operating Temperature 0–40˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.06 kg ( 0.13 lb )
Dimensions (L x W x H) 6.59 x 3.40 x 1.60 cm
(2.59 x 1.34 x 0.63 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
