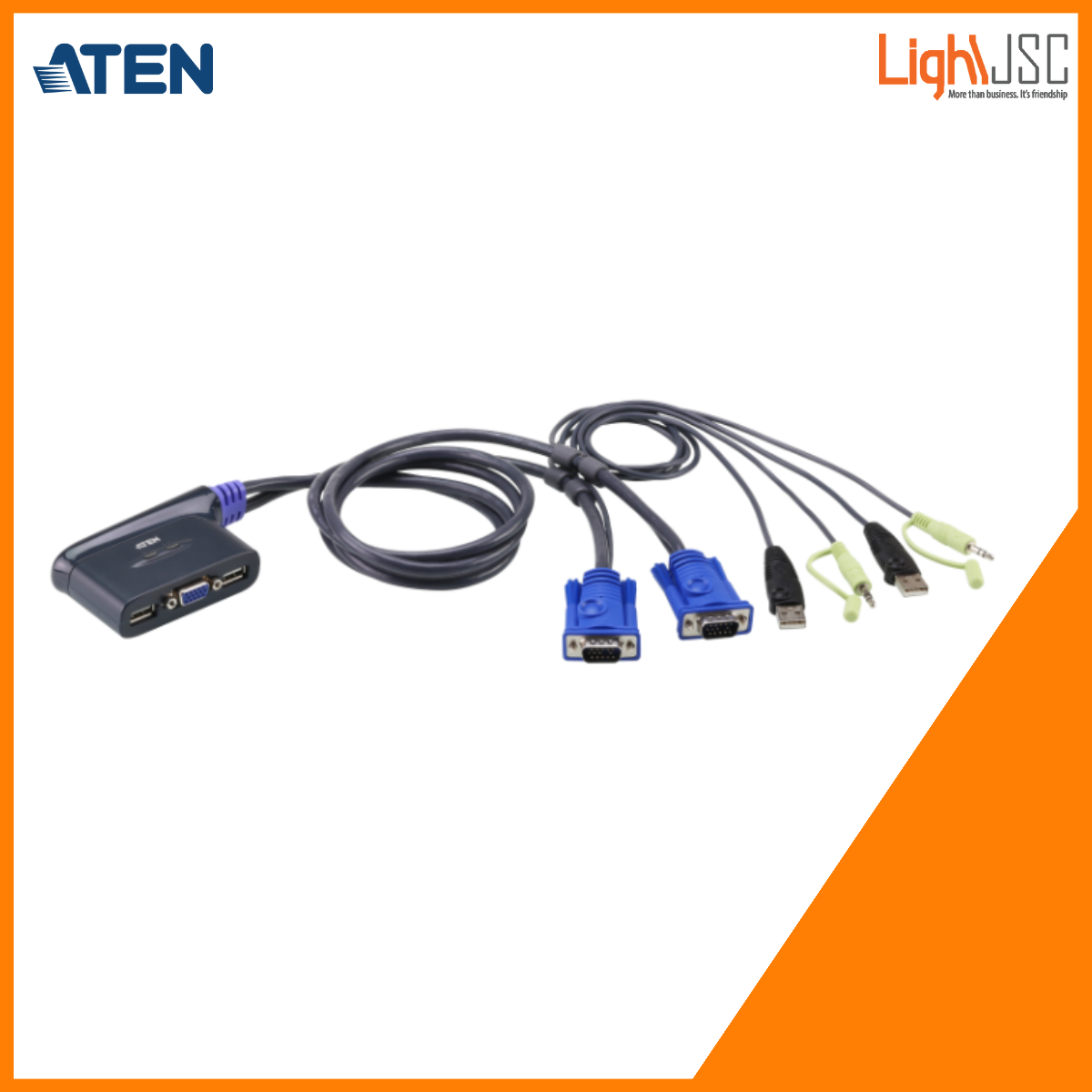

Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.
Package Contents
- 1x 2-Port USB KVM Switch with Attached Cables
- 1x User Instructions
Our total USB solution. Link two USB computers to one USB console for a complete USB system compatible with all operating platforms: PC, Mac and Sun.
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Computer Connections | 2 |
Port Selection | Hotkey, Mouse |
Connectors | |
Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
KVM Ports | 2 x HDB-15 Male (Blue) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) |
LEDs | |
Selected | 2 (Green) |
Cable Length | |
Computer | 2 x 0.9 m |
Emulation | |
Keyboard / Mouse | USB |
Video | 2048 x 1536, DDC2B |
Scan Interval | 5 seconds |
Power Consumption | DC5V:0.33W:14BTU |
Environmental | |
Operating Temperature | 0 – 50°C |
Storage Temperature | -20 – 60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.28 kg ( 0.62 lb ) |
Dimensions (L x W x H) | 8.75 x 6.08 x 2.80 cm (3.44 x 2.39 x 1.1 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
