Aten CS22H 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector

  • One KVM console controls two USB HDMI computers
  • Superior video quality – up to 4096 x 2160 @ 60 Hz
  • Hook design for space-saving and organized workstation
  • Bus-powered design
    Note: The images are for reference only. The printing on the device may differ due to product enhancement.
Categories: ,

Control 2 PCs with one Keyboard / Mouse / Monitor

Boost your productivity and simplify your desktop setup with the CS22H USB 4K HDMI Cable KVM Switch.

Whether you’re working, creating, or playing, you can manage two computers using a single keyboard, mouse, and monitor, and switch effortlessly between them with just a push of a button.

Cross-Platform Integration

The CS22H is compatible with Windows, Mac, and Linux operating systems, enabling seamless integration of versatile computer workflows with the convenience of a one-button switch.

Switch Seamlessly with A Simple Pushbutton

The 1.8-meter remote port selector can be flexibly located, allowing quick and straightforward switching between 2 computers from anywhere on the desktop.

Bus-Powered for Eco Efficiency

The KVM switch becomes functional once connected to computers via USB, eliminating the need for additional power adapters.







All in One, Plug and Play!

The CS22H features a patented all-in-one design with integrated cables, offering USB 2.0 and HDMI 2.0 plug-and-play connectivity.

USB 2.0 Peripheral Sharing

The console USB ports are compatible with USB 2.0 peripherals, facilitating multitasking and data-intensive desktop workflows.









Stunning Visual Clarity and Smoothness

Experience stunning 4K@60Hz video clarity and FHD 144Hz visual performance with the CS22H. Elevate your desktop experience for work and play.

Audio On. Dive In.

Boost your desktop productivity with the addition of immersive audio.

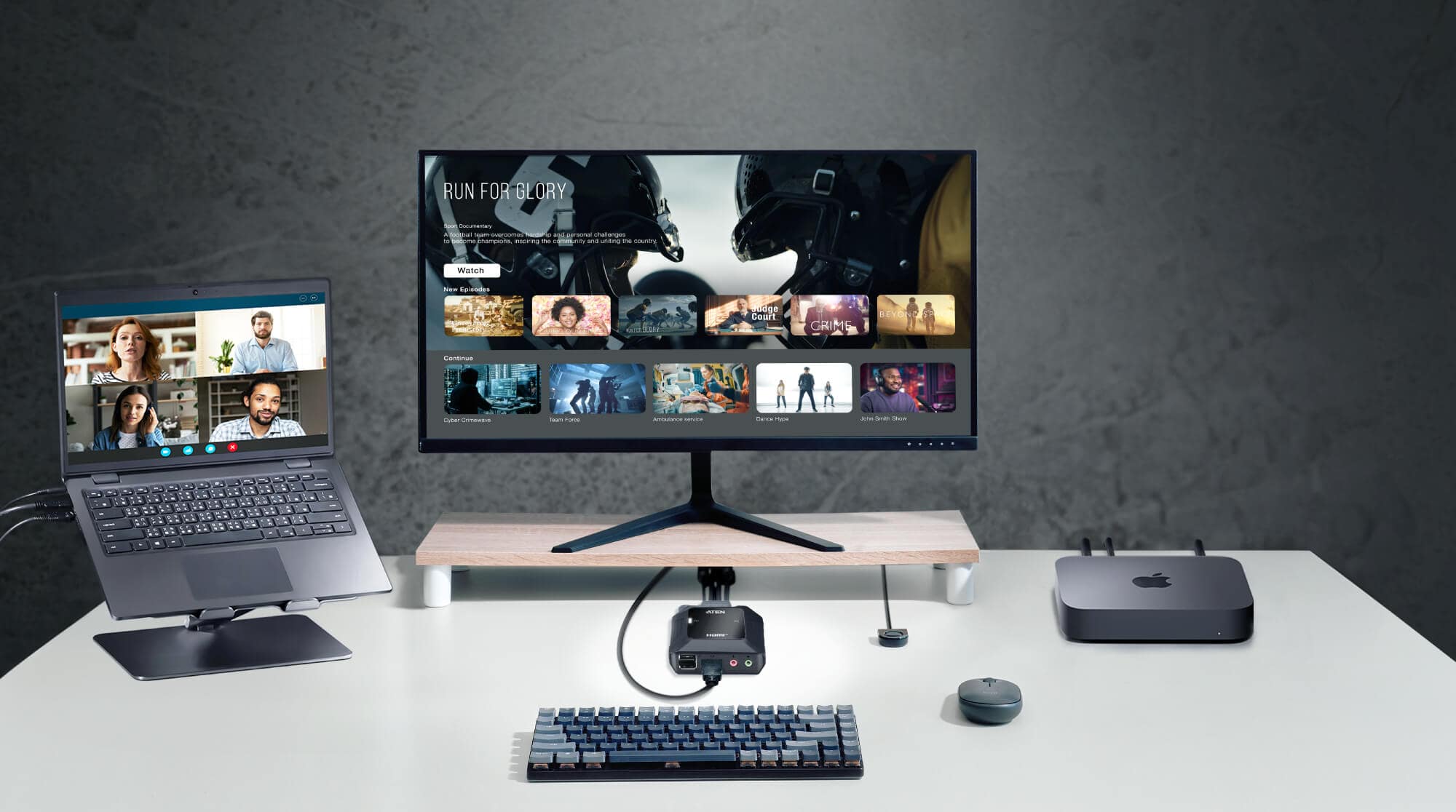

Space Efficient Workspace Setup

The CS22H can be easily placed out of the way with the handy hook, ensuring optimized workspace efficiency.







Applications

The CS22H Cable KVM switch is perfect for staying on top of various applications such as work, graphic/video creation, and gaming.

Product Comparison
Option
CS52DP
2-Port USB-C DisplayPort Hybrid Cable KVM Switch
CS22H
2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
CS22HF
2-Port USB FHD HDMI Cable KVM Switch
CS22U
2-Port USB VGA Cable KVM Switch with Remote Port Selector
CS22DP
2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector
Number of Computers
2
2
2
2
2
Console Interface
USB
DisplayPort
USB
HDMI
USB
HDMI
USB
VGA
USB
DisplayPort
Computer Interface
USB
DisplayPort
USB-C
USB
HDMI
USB
HDMI
USB
VGA
USB
DisplayPort
USB Peripheral ✔ ✔ ✔ ✔ ✔
USB 2.0 ✔ ✔ ✔
N/A
 ✔
Hot-pluggable ✔ ✔ ✔ ✔ ✔
Bus – Powered ✔ ✔ ✔ ✔ ✔
Audio
Speaker
Microphone
Speaker
Microphone
N/A
N/A
Speaker
Microphone
Multi-Platform Support
Windows
Mac
Linux
Android
Windows
Mac
Linux
Windows
Mac
Linux
Windows
Mac
Sun
Linux
Windows
Mac
Linux
Cable Length
1.2 m
1.2 m
1.2 m
0.9 m
1.2 m
Max. Resolution
1920 x 1080 @ 144Hz
2560 x 1440 @ 144Hz
4096 x 2160@60Hz
1920 x 1080 @ 144Hz
2560 x 1440 @ 144Hz
4096 x 2160@60Hz
1920 x 1200 @ 60Hz
1920 x 1080 @ 60Hz
2048 x 1536
4096 x 2160@30Hz
Package Contents
  • 1x CS22H 2-Port USB 4K HDMI Cable KVM Switch
  • 1x User Instructions



Features

For a smart-looking, neat and tidy work environment, ATEN’s patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.

The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.

When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.

Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.

  • One USB keyboard, mouse and one HDMI monitor control two HDMI computers
  • Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Computer selection via remote port selector
  • HDMI compliant; HDCP compliant
  • Supports USB hot-plugging
  • The console USB ports can be used for USB peripheral sharing*
  • Multiplatform support – Windows, Mac and Linux
  • Hook design for space-saving and organized workstation
  • Plug and play
  • Bus-powered – no external power adapter required

Diagram

Specifications

Computer Connections 2
Port Selection Remote Port Selector
Connectors
Console Ports 1 x HDMI Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM (Computer) Ports 2 x HDMI Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
Power (Optional) 1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected) 2 (White)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse N/A
Video Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
Power Consumption DC5V:1.4W:19BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.34 kg ( 0.75 lb )
Dimensions (L x W x H) 8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
