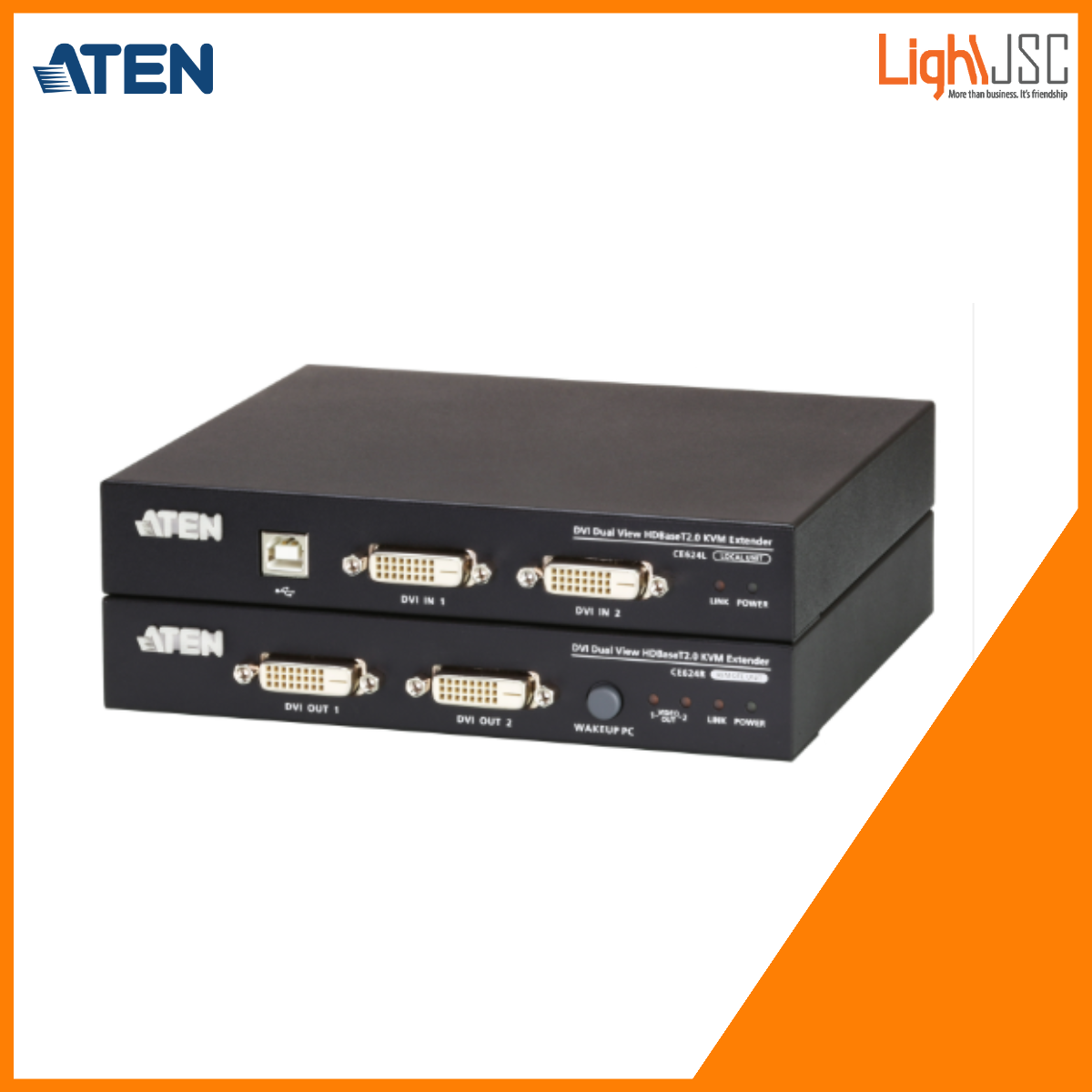

Aten CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender

  • Allows DVI Dual View access to a computer and KVM control from a remote console
  • Integrated USB 2.0 ports – ensuring fast transmission speeds for keyboard, mouse and peripherals
  • HDBaseT™ 2.0 connectivity technology Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable EDID Buffer for smooth power-up and the highest quality display Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Categories: ,

Overview of Aten CE624

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Package Contents

  • 1x CE624L USB DVI Dual View HDBaseT 2.0 KVM Extender (Local Unit)
  • 1x CE624R USB DVI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
  • 2x DVI-D Cables (1.8m)
  • 1x Pink Audio Jack Cable Sets (1.8m)
  • 1x Green Audio Jack Cable Sets (1.8m)
  • 1x USB Cable (1.8m)
  • 2x Power Adapters
  • 8x Foot Pads
  • 2x Mounting Kits
  • 1x User Instructions

Features

  • Allows DVI Dual View access to a computer and KVM control from a remote console
  • HDBaseT™ 2.0 connectivity technology
    • Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
    • EDID Buffer for smooth power-up and the highest quality display
    • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
  • Long distance superior video quality
    • HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m (for single view only; dual-view resolution up to 1080p)
    • HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m (for single view only; dual-view resolution up to 720p)
  • Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
  • Integrated USB 2.0 ports – ensuring fast transmission speeds for keyboard, mouse and peripherals
  • Supports 2-channel PCM digital audio – ensuring high quality audio transmissions
  • Supports PC Wakeup function via pushbutton or hotkey
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • HDCP compatible

Diagram

Sơ đồ kết nối của Aten CE624

Specifications

Function CE624L CE624R
Connectors
KVM Ports 2 x DVI-D Female (White)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)		 N/A
Console Ports N/A 2 x DVI-D Female (White)
3 x USB Type A Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack with locking 1 x DC Jack with locking
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video Output N/A 2 (Orange)
Switches
Long Reach Mode Switch 1 x Slide Switch 1 x Slide Switch
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Pushbuttons
Wakeup button N/A 1 x Push button
Video Single view: Up to 1600×1200 & 1920×1200@90m (Cat 5e) / 100m (cat 6/6a); 1080P@100m
Dual-view: Up to 1080p@100m		 Single view: Up to 1600×1200 & 1920×1200@90m (Cat 5e) / 100m (cat 6/6a); 1080P@100m
Dual-view: Up to 1080p@100m
Power Consumption DC5V:4.93W:23BTU DC5V:7.2W:49BTU
Environmental
Operating Temperature 0–40°C 0–40°C
Storage Temperature -20–60°C -20–60°C
Humidity 0–80% RH, Non-condensing 0–80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.80 kg ( 1.76 lb ) 0.81 kg ( 1.78 lb )
Dimensions (L x W x H) 17.42 x 15.94 x 2.88 cm
(6.86 x 6.28 x 1.13 in.)		 17.42 x 15.94 x 2.88 cm
(6.86 x 6.28 x 1.13 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
